Sussman SSB100 Electric Steam Boiler - 102 kW, 480V 3-Phase, ASME, National Board (Serial# N6-13488)

OVERVIEW

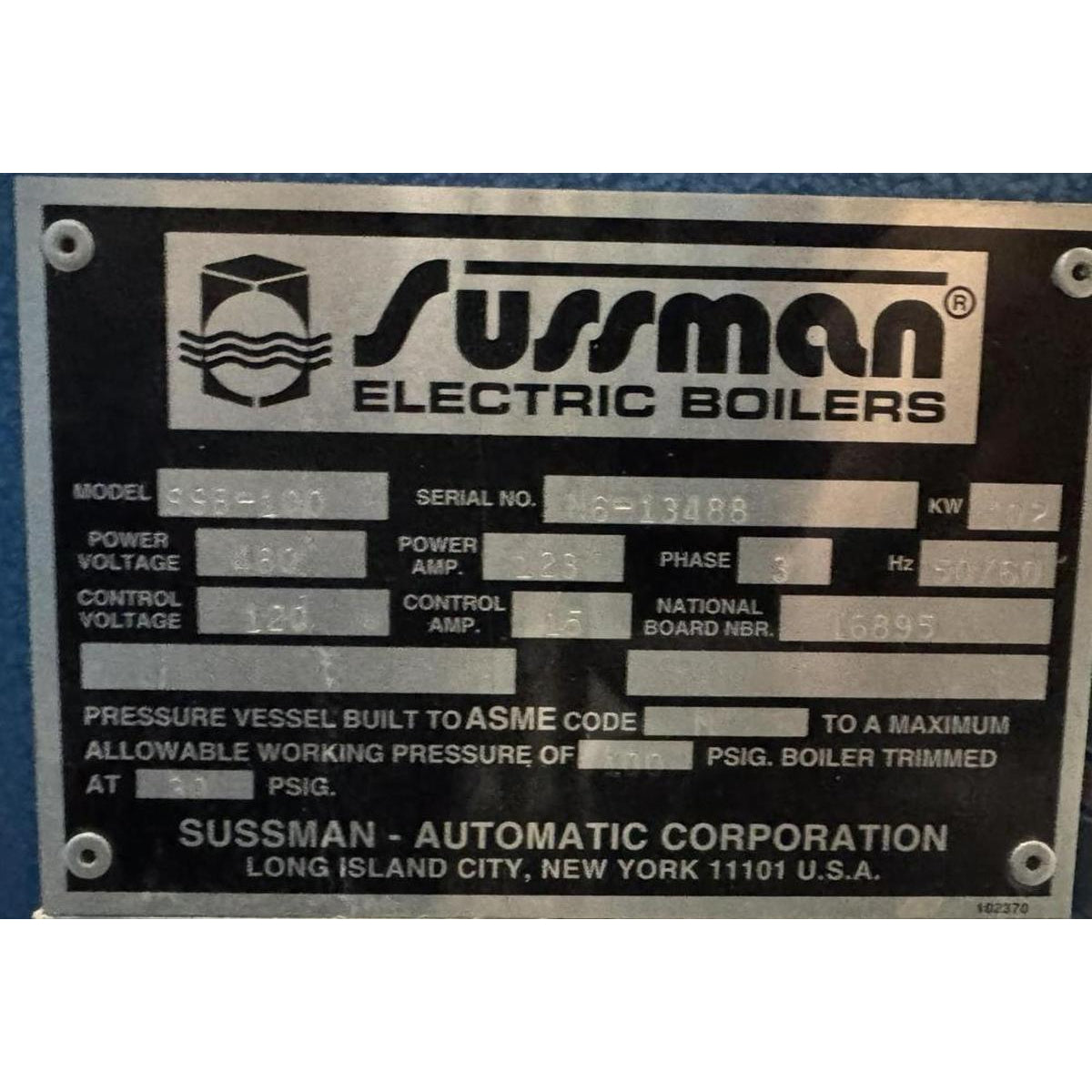

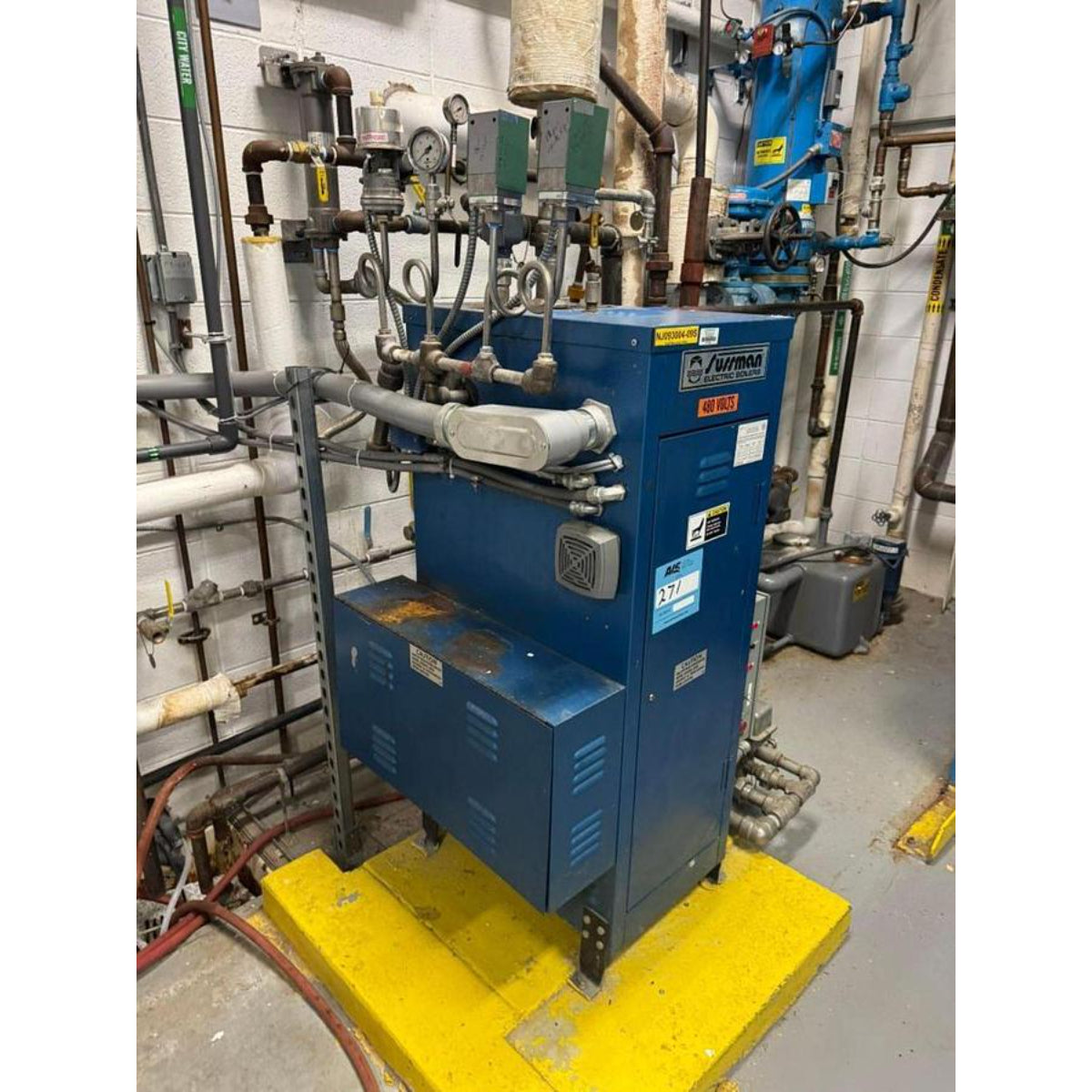

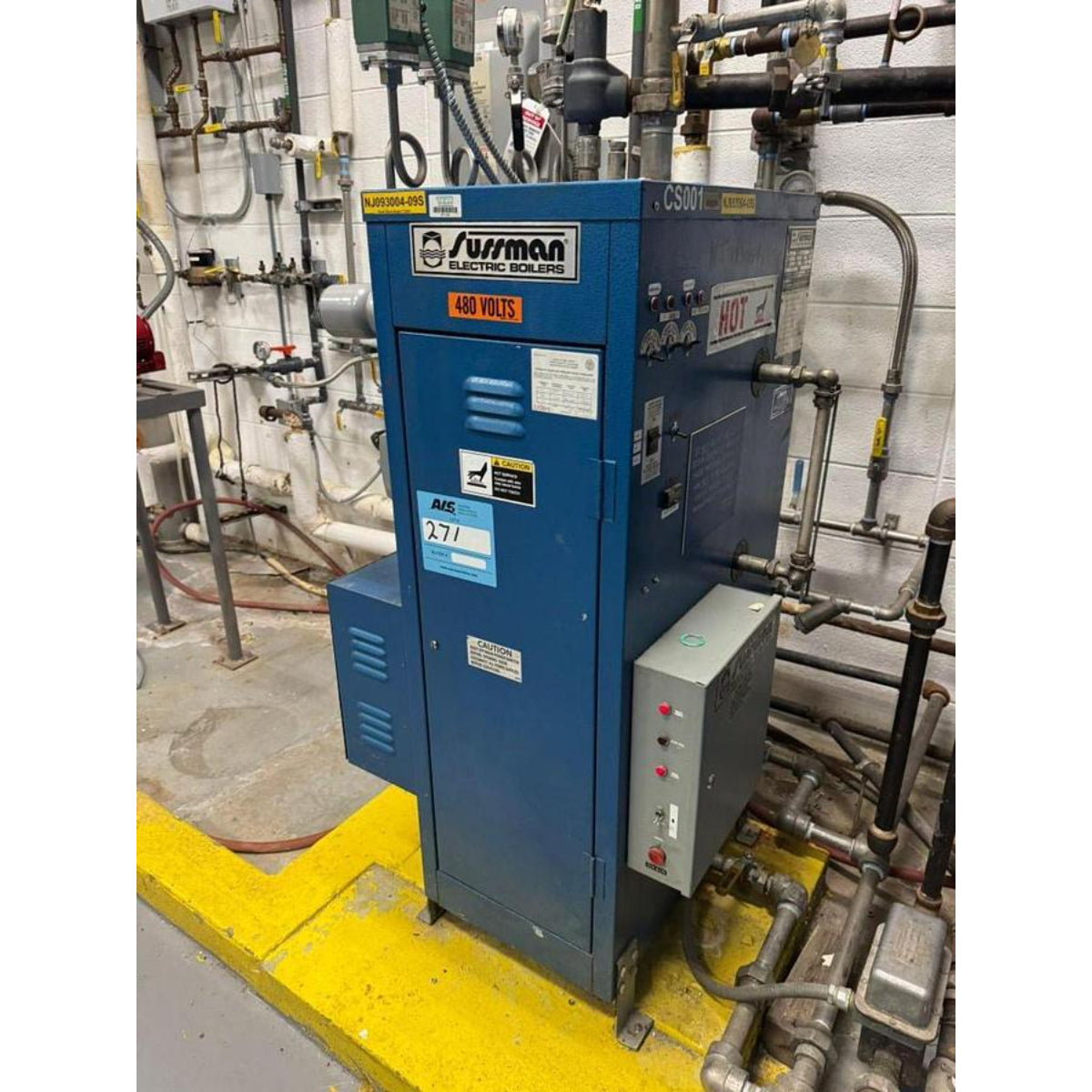

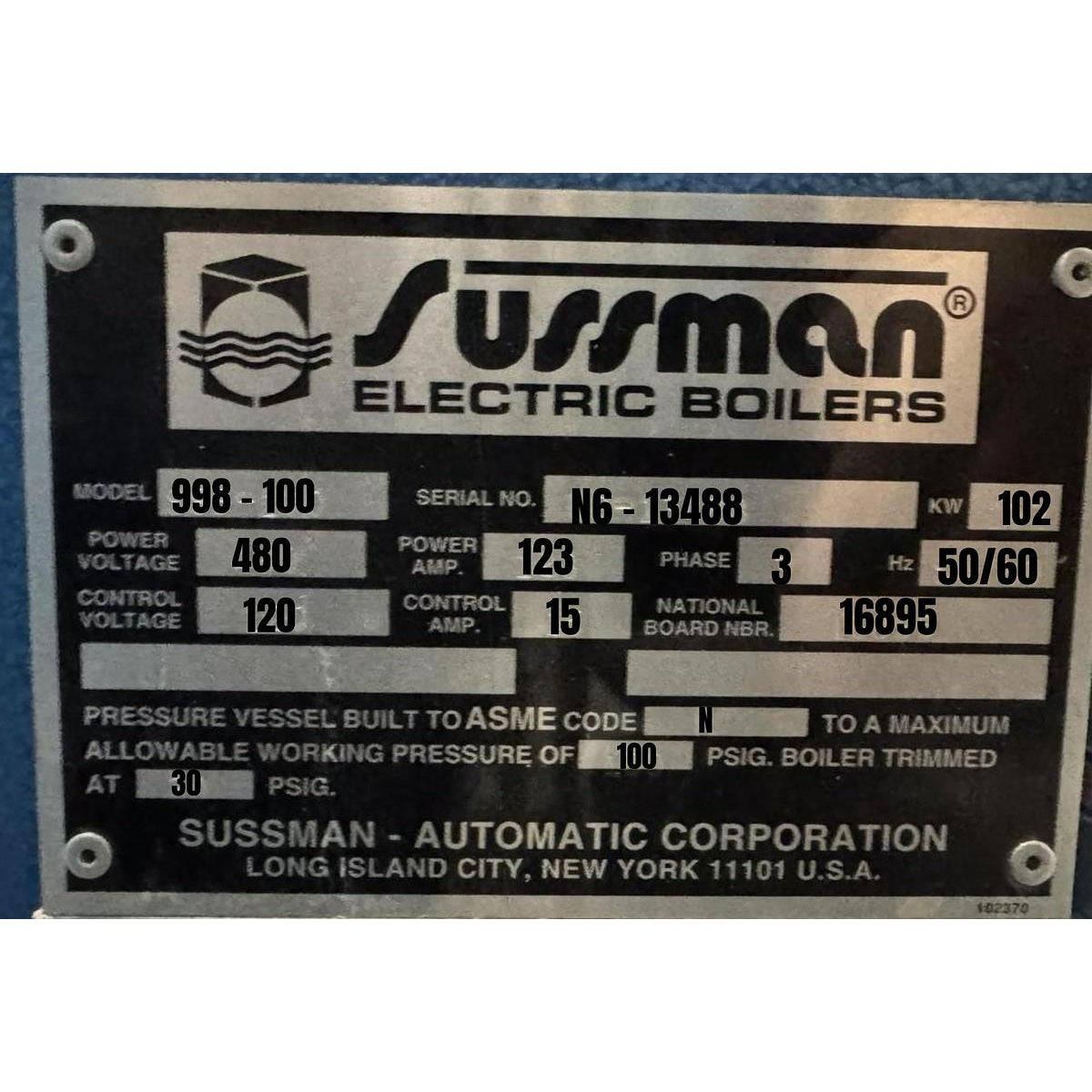

Sussman Electric Steam Boiler, Model SSB100, Serial# N6-13488, National Board# 16895 Approximate 102kw, 3/60/480V, with tank & condensate return. Sussman Model 998-100 electric steam boiler removed from operating facility. This compact commercial-grade steam generator features 102 kW electric input capacity. ASME Code Section IV certified pressure vessel built to 100 PSIG maximum allowable working pressure, factory trimmed for 30 PSIG operating pressure. 480V 3-phase 123 amp power supply with 120VAC control voltage. UL Listed construction with National Board registration #16895. Manufactured by Sussman-Automatic Corporation in Long Island City, New York. Complete system includes boiler, condensate return tank (CS001), and integrated controls. Ideal for hospitals, laundries, food processing, pharmaceutical manufacturing, commercial buildings, institutional facilities, or any application requiring clean electric steam without combustion emissions or gas piping.

EQUIPMENT SPECIFICATIONS

Model Information:

• Manufacturer: Sussman-Automatic Corporation
• Model Number: 998-100 (SSB100)
• Serial Number: N6-13488
• Country of Origin: USA (Long Island City, New York)
• National Board Number: 16895

Performance Ratings:

• Kilowatt Input: 102 kW
• Maximum Allowable Working Pressure: 100 PSIG
• Operating Pressure (Boiler Trimmed At): 30 PSIG
• ASME Code: Section IV (Low Pressure Heating Boilers)
• Pressure Vessel Construction: ASME stamped

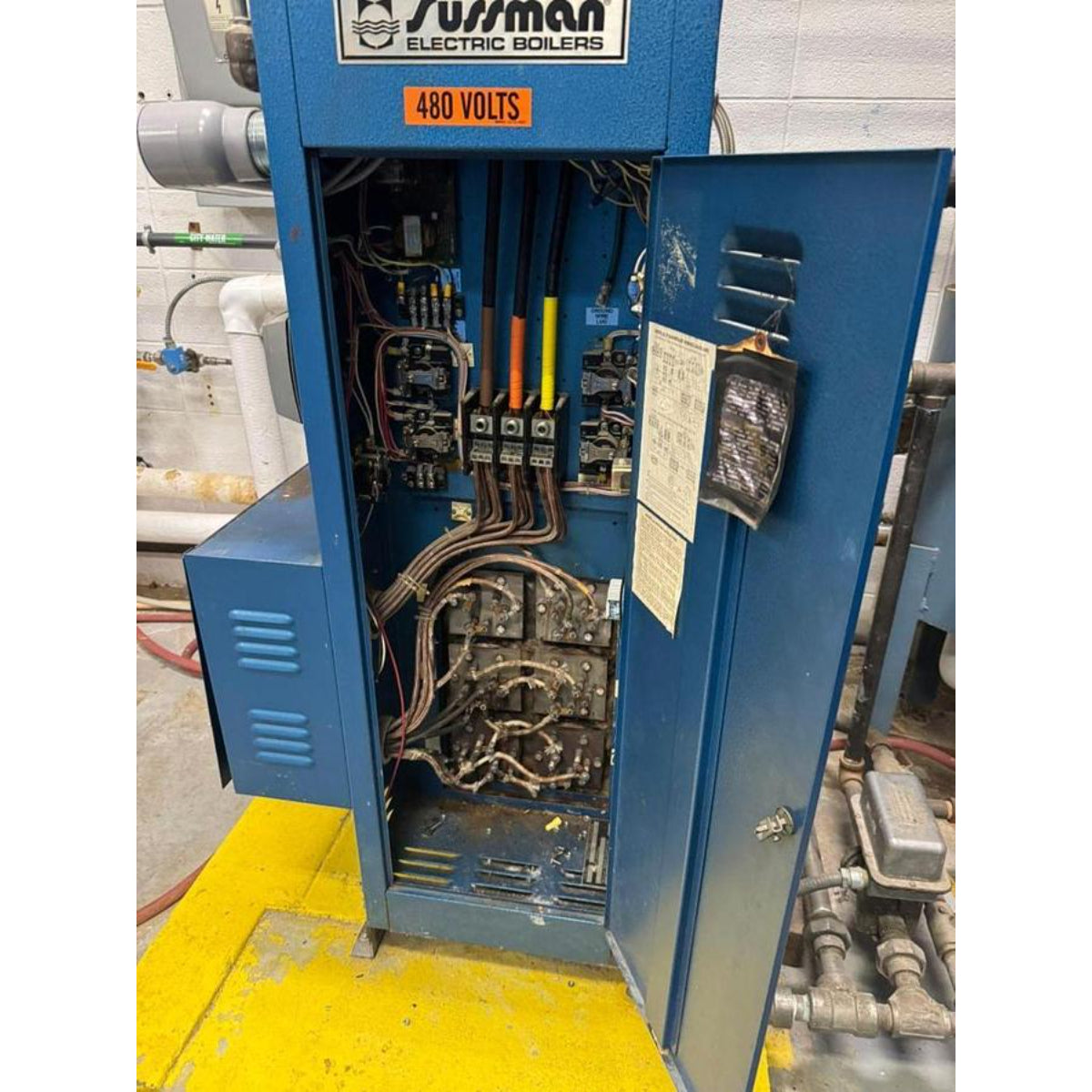

Electrical Specifications:

• Power Voltage: 480 VAC
• Frequency: 50/60 Hz
• Phase: 3-Phase
• Power Amperage: 123 Amps
• Control Voltage: 120 VAC
• Control Amperage: 15 Amps
• Electrical Connection: Hardwired

Certification & Compliance:

• ASME Code: Section IV
• National Board Registration: Yes (NB# 16895)
• UL Listed: Yes (Electric Boiler)
• Manufacturer: Sussman-Automatic Corporation

Included Equipment:

• Sussman SSB100 electric steam boiler

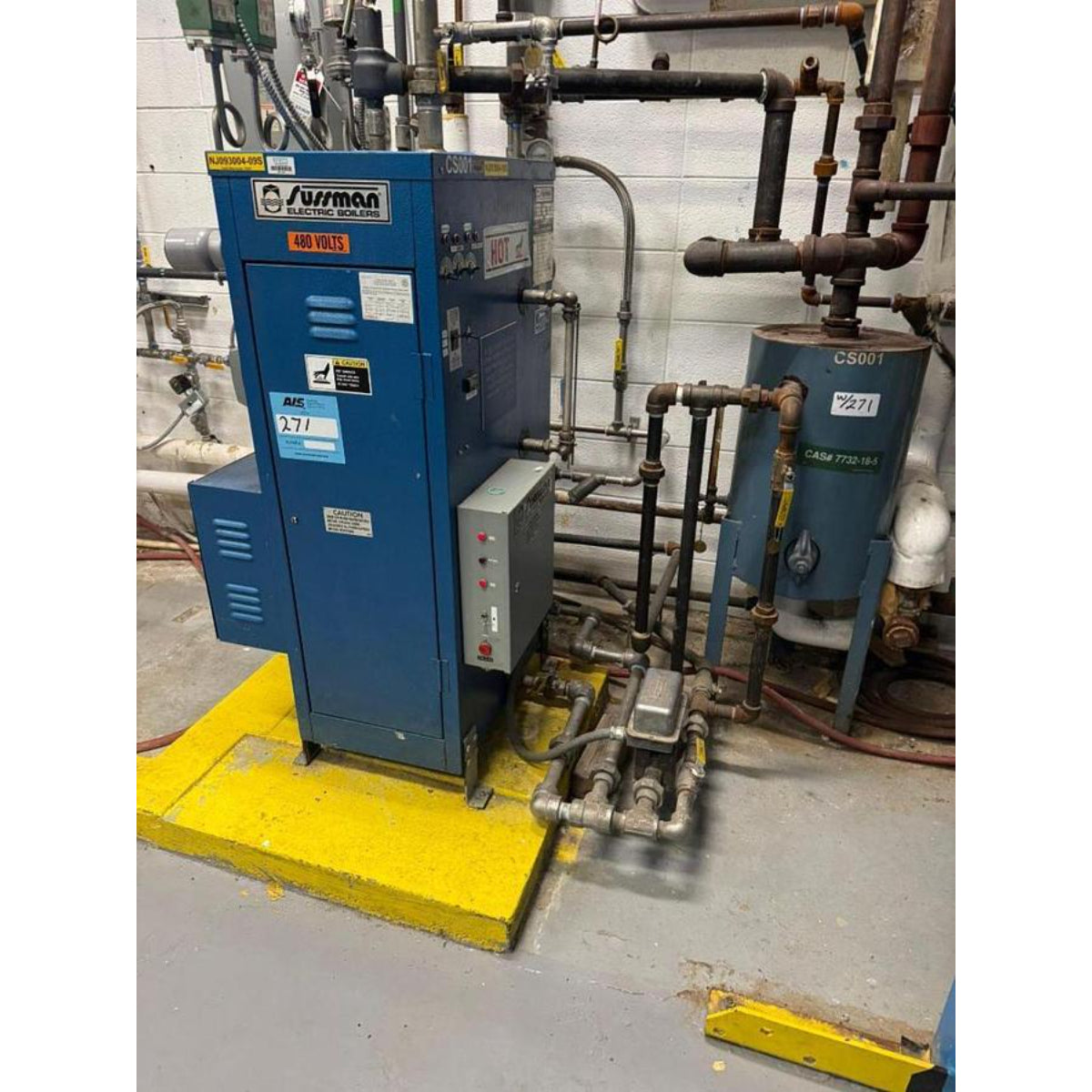

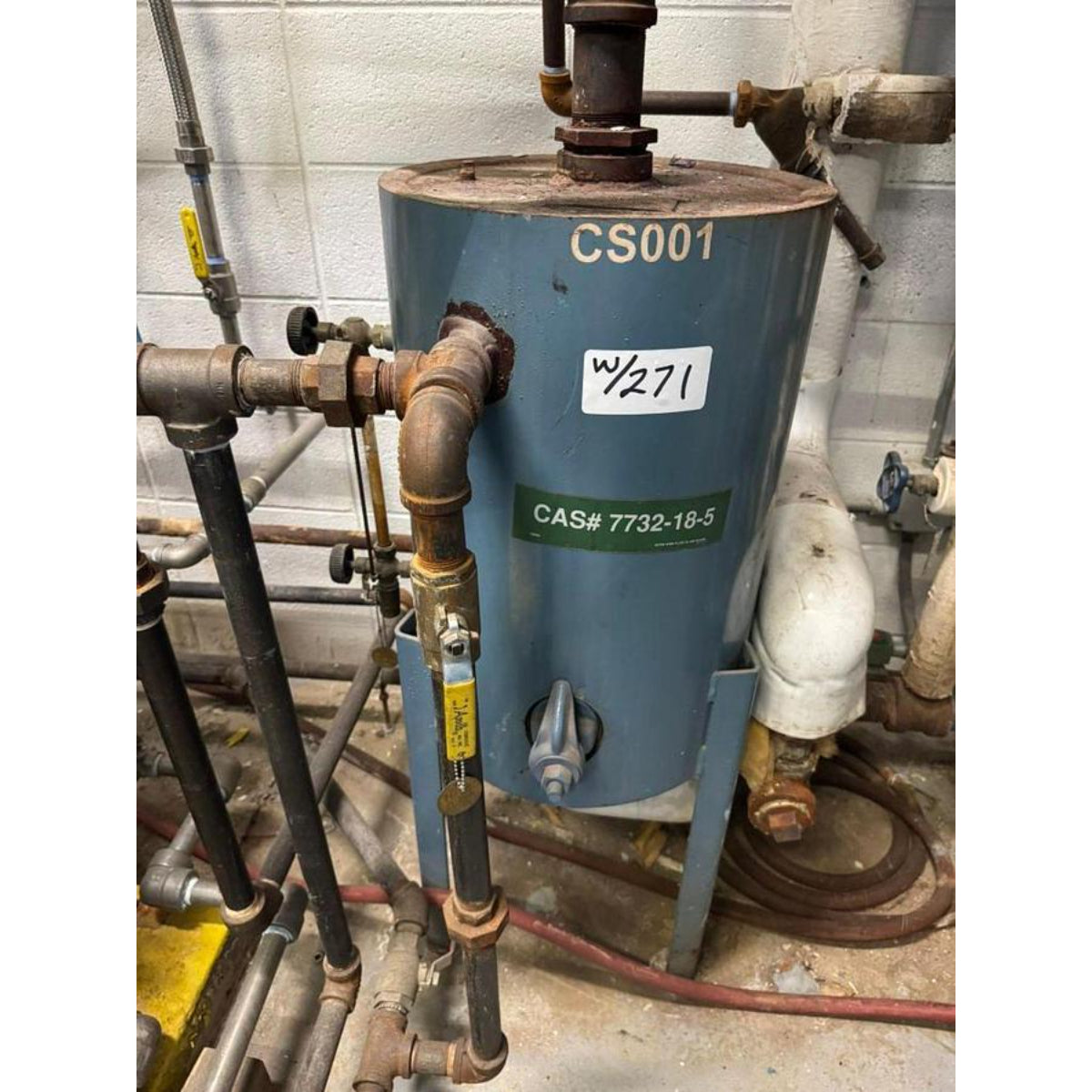

• Condensate return tank (CS001, CAS# 7732-18-5)

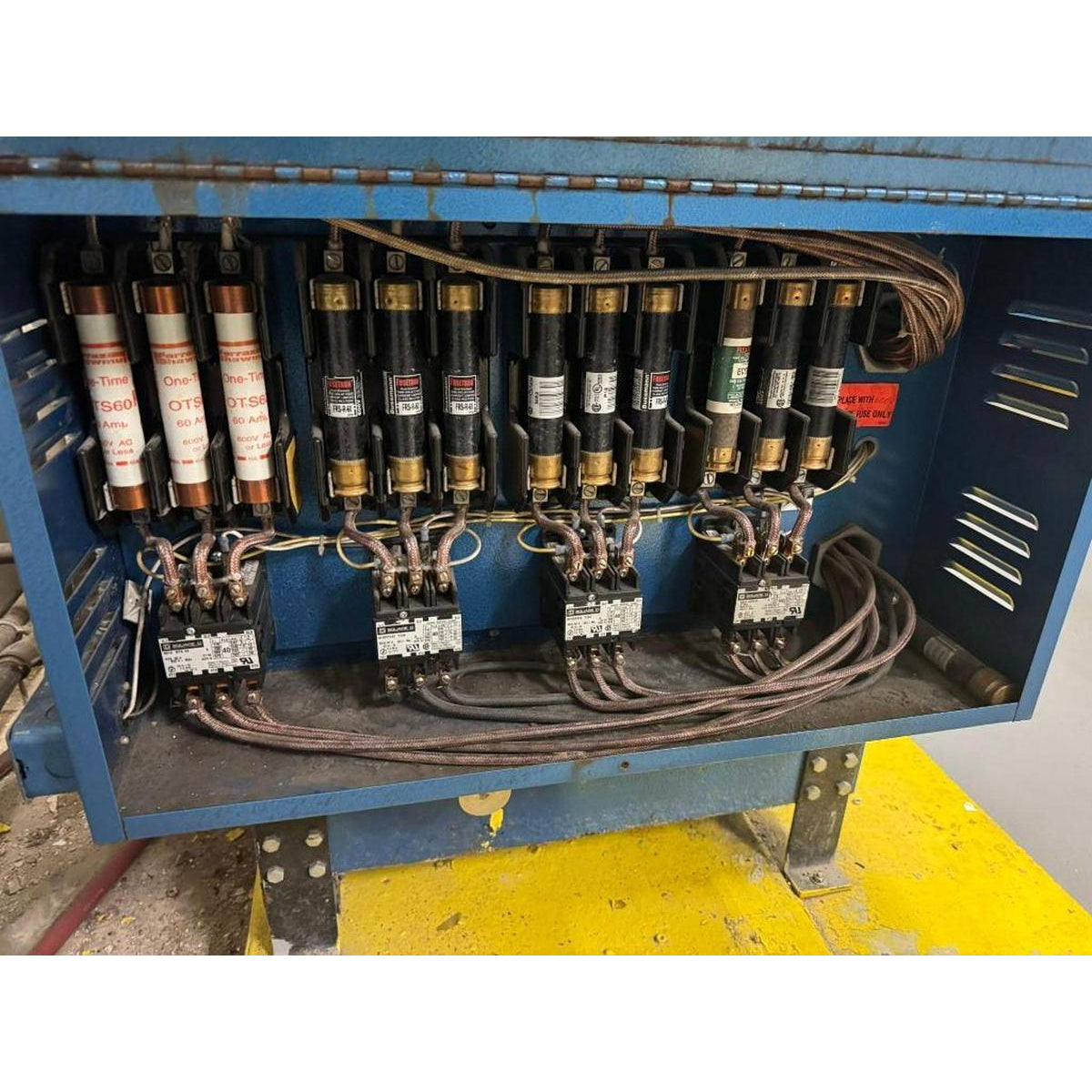

• Integrated control panel with indicators
• Low water cutoff protection
• High pressure cutoff protection
• Element cutout switches (3 stages)
• Hand/Off/Auto control selector
• Alarm system
• Safety interlocks
• Pressure gauges
• Temperature controls
• Feedwater connections
• Steam outlet connections

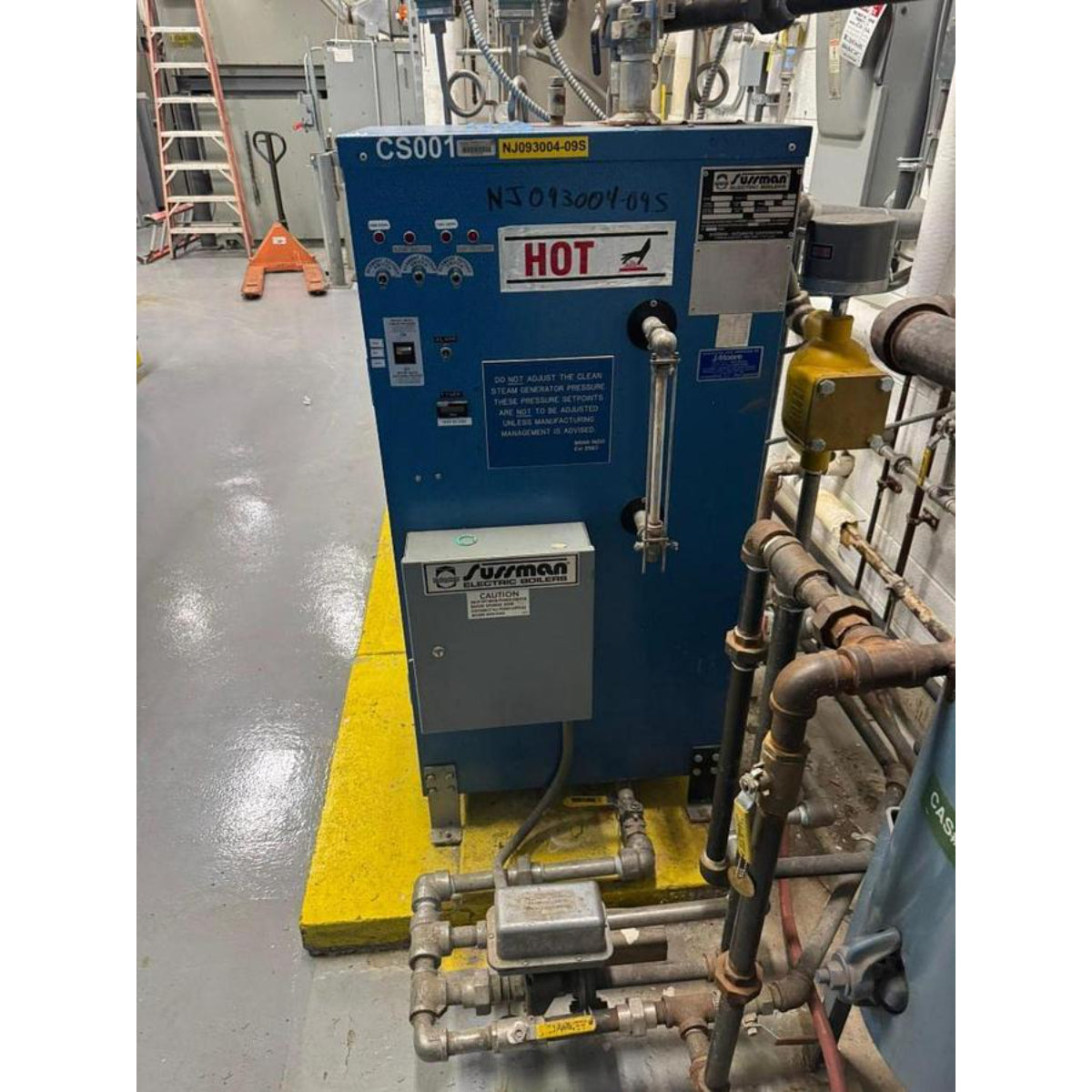

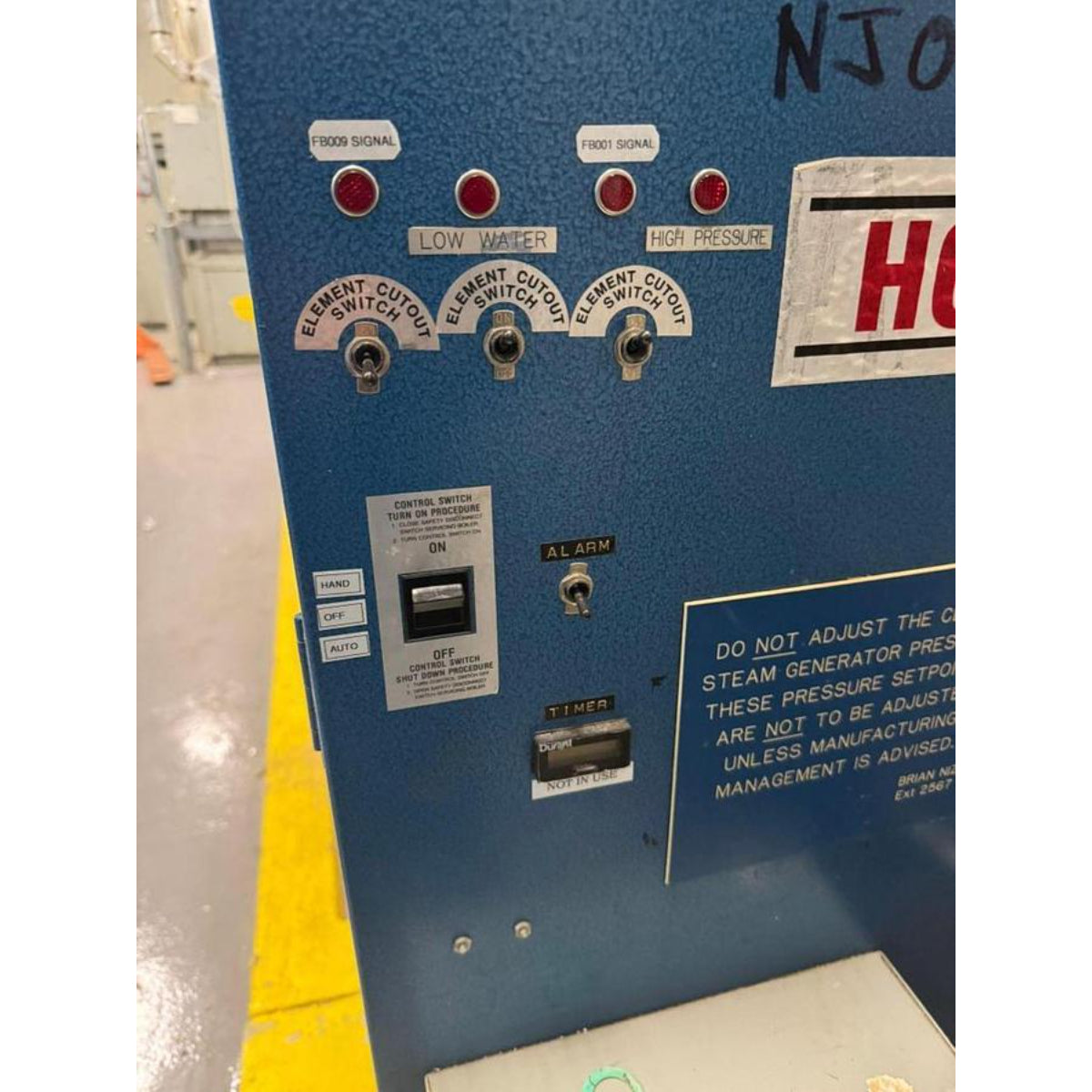

Control Features:

• Front-mounted control panel
• Low water indicator light
• High pressure indicator light
• Element cutout switches (3 positions)
• Hand/Off/Auto selector switch
• Timer control
• Alarm indicator
• Warning placard: "DO NOT ADJUST THE CLEAN STEAM GENERATOR PRESSURE - THESE PRESSURE SETPOINTS ARE NOT TO BE ADJUSTED UNLESS MANUFACTURING MANAGEMENT IS ADVISED"

KEY FEATURES & BENEFITS

Electric Steam Advantages:

• Zero emissions - no combustion products
• No gas piping or fuel storage required
• No flue or chimney requirements
• Quiet operation without burner noise
• Quick startup and response time
• Precise steam pressure control
• Minimal maintenance vs. fuel-fired
• Clean steam for food/pharmaceutical applications
• Nearly 100% efficient energy conversion
• Suitable for locations without gas service

Sussman Quality Features:

• ASME Code Section IV certified design
• National Board registered and stamped
• UL Listed for safety compliance
• Compact vertical footprint
• Multiple immersion heating elements
• Integrated electrical controls
• Professional commercial-grade construction
• Built in USA (Long Island City, NY)

Operational Benefits:

• 102 kW efficient electric heating
• 30 PSIG operating pressure (100 PSIG MAWP)
• Suitable for commercial/institutional applications
• Rapid steam generation
• Minimal installation requirements
• Low maintenance operation
• Clean room compatible
• No combustion air requirements
• Integrated condensate return system

Complete System Package:

• Boiler and condensate tank included
• All controls and safeties installed
• Ready for connection to steam distribution
• Integrated feedwater system
• Factory-coordinated components
• Single-source system

SPECIFICATIONS SUMMARY

Boiler:

• Model: Sussman 998-100 (SSB100)
• Serial: N6-13488
• Input: 102 kW electric
• MAWP: 100 PSIG
• Operating: 30 PSIG
• ASME: Section IV
• NB#: 16895

Electrical:

• Primary: 480V/3-Phase/50-60Hz
• Amperage: 123 Amps
• Control: 120 VAC, 15 Amps

Physical:

• Material: Steel pressure vessel
• Type: Vertical electric
• Mounting: Floor
• Cabinet: Blue powder-coated steel
• Certification: ASME, UL, National Board
• Origin: USA

System Components:

• Electric steam boiler
• Condensate return tank (CS001)
• Integrated control panel
• Safety controls and interlocks
• Pressure and temperature gauges
• Feedwater connections

ADDITIONAL INFORMATION

• Condition: Used - Operating Facility Removal
• Manufacturer: Sussman-Automatic Corporation
• Location: Long Island City, New York USA
• Model: 998-100 (SSB100)
• Serial Number: N6-13488
• Kilowatt Input: 102 kW
• Maximum Allowable Working Pressure: 100 PSIG
• Operating Pressure: 30 PSIG (factory trimmed)
• Power Requirements: 480V, 3-Phase, 50/60 Hz, 123 Amps
• Control Voltage: 120 VAC, 15 Amps
• ASME Code: Section IV
• National Board Number: 16895
• Certification: ASME, UL Listed, National Board
• Cabinet Finish: Blue powder-coated steel
• Configuration: Vertical electric steam generator
• Included: Boiler, condensate tank, controls
• Estimated Weight: 800-1,000 lbs (boiler and tank combined)
