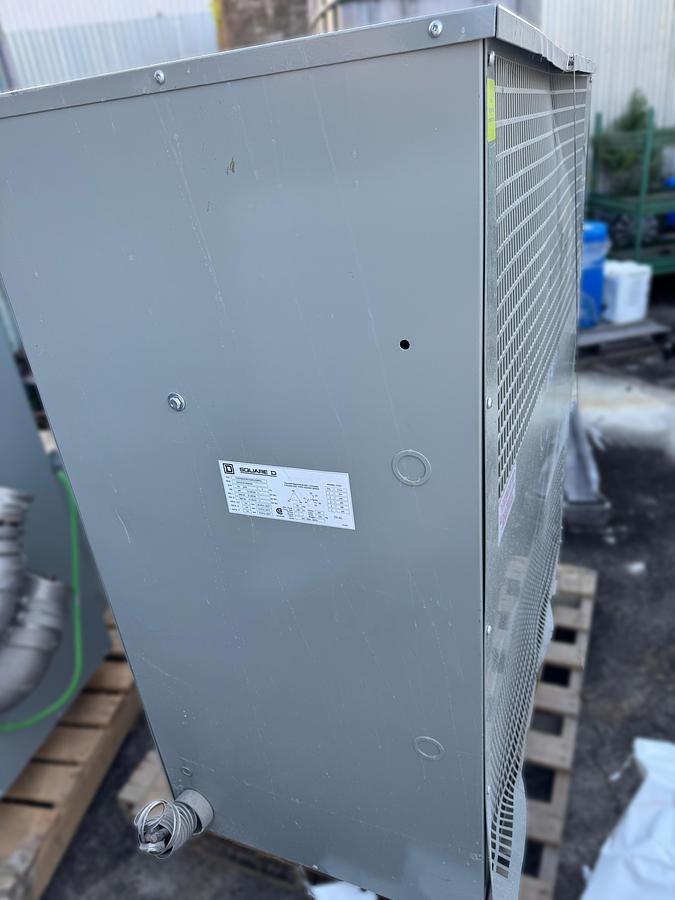

Square D 150 kVA Dry Type Transformer CZTC0150 S000008

OVERVIEW

Square D Dry Type Transformer - Model CZTC0150 S000008, Catalog C150T68HFISCUZZNLPXSPCL, 150 kVA capacity, CSA certified LR 53763. Professional-grade three-phase dry type transformer featuring 480V primary voltage, dual secondary voltages of 208/120V, Class 220 insulation system with 135°C temperature rise rating at 135°C ambient elevation temperature. Complete with copper/aluminum connectors and five-position tap configuration (456V-504V). Built to CSA standards with dry-type construction for safe, maintenance-free operation. Ideal for industrial facilities, data centers, healthcare institutions, commercial buildings, or any application requiring clean power isolation and voltage transformation. Weight: 976 kg (2,152 lbs). Asset ID: T-10913.

EQUIPMENT SPECIFICATIONS

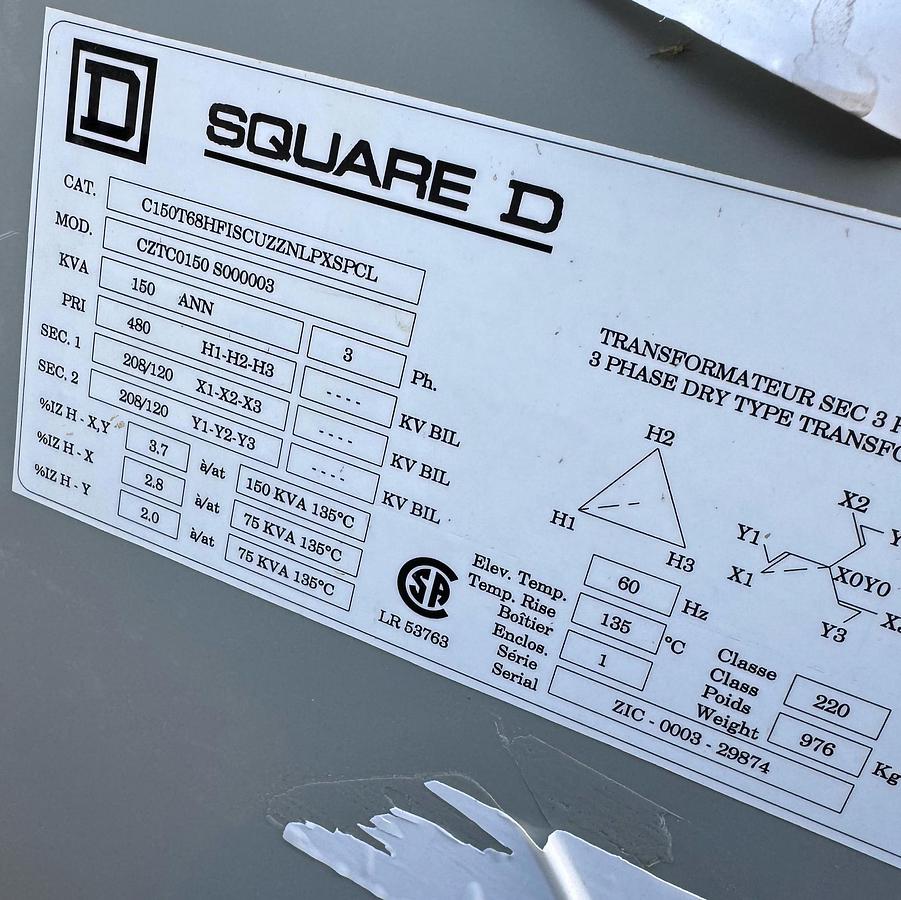

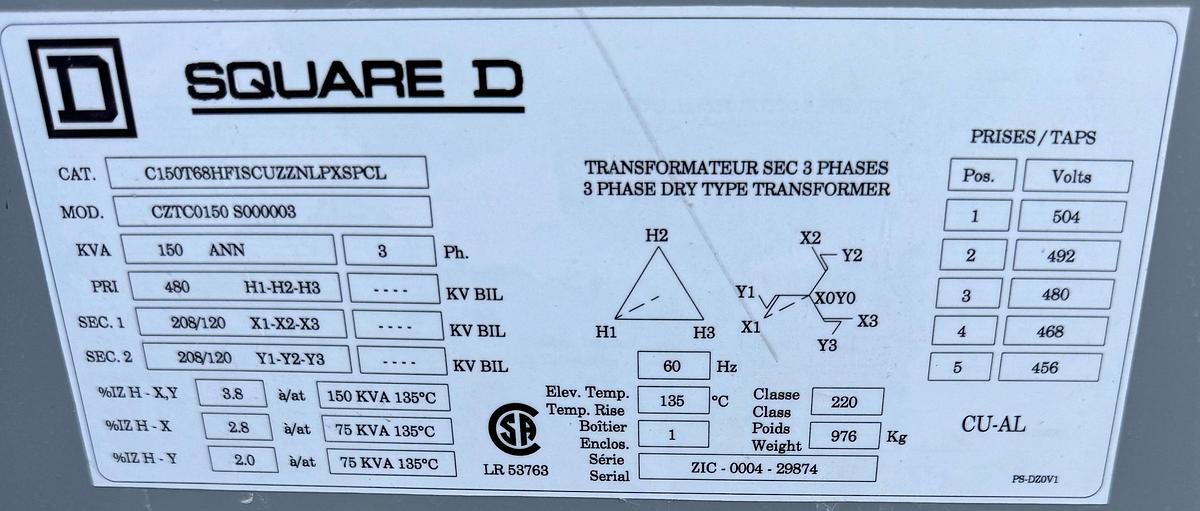

Transformer Model Information:

• Manufacturer: Square D (Schneider Electric)
• Catalog Number: C150T68HFISCUZZNLPXSPCL
• Model Number: CZTC0150 S000008
• Capacity: 150 kVA
• Configuration: 3-Phase Dry Type Transformer
• Weight: 976 kg (2,152 lbs)

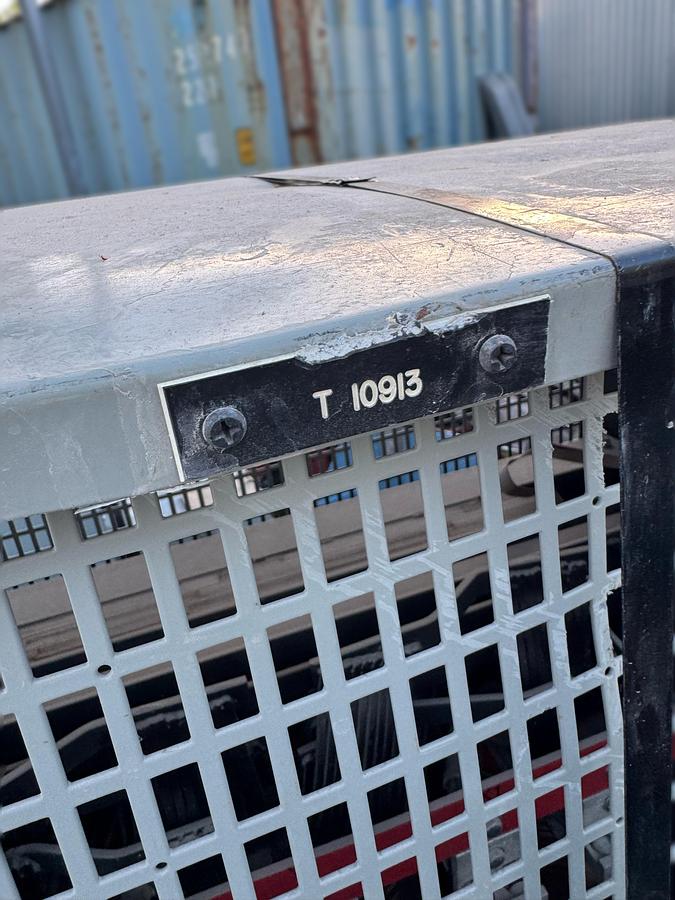

• Asset ID: T-10913
• CSA Certification: LR 53763
• Enclosure Type: 1 (Boitier/Enclos. Série 1)
• Serial Number: Z1C-0004-29874

Electrical Specifications - Primary:

• Primary Voltage: 480 VAC
• Winding Configuration: H1-H2-H3
• Phase: 3-Phase (ANN)
• Connection: KV BIL

Electrical Specifications - Secondary:

• Secondary Voltage 1: 208/120 VAC, X1-X2-X3
• Secondary Voltage 2: 208/120 VAC, Y1-Y2-Y3
• Phase: 3-Phase
• Frequency: 60 Hz
• Connection: KV BIL

Insulation & Temperature:

• Impedance H-X,Y: 3.8% at 150 kVA 135°C
• Impedance H-X: 2.8% at 75 kVA 135°C
• Impedance H-Y: 2.0% at 75 kVA 135°C
• Elevation Temperature: 135°C
• Temperature Rise: 135°C
• Insulation Class: 220 (Classe)
• Connector Type: CU-AL (Copper/Aluminum)

Available Tap Settings:

• Position 1: 504 Volts
• Position 2: 492 Volts
• Position 3: 480 Volts (Standard)
• Position 4: 468 Volts
• Position 5: 456 Volts

KEY FEATURES & BENEFITS

Square D Quality Manufacturing:

• Premium Schneider Electric brand
• Dry type transformer design
• 150 kVA capacity
• CSA LR 53763 certified
• Heavy-duty commercial construction
• Professional installation quality
• 976 kg robust build
• Type 1 enclosure

High Performance Design:

• 150 kVA power capacity
• 480V primary voltage
• Dual secondary: 208/120V
• Three-phase operation
• 60 Hz frequency
• Five-position tap configuration
• Multiple winding impedance ratings
• Split secondary capability

Dual Secondary Configuration:

• Two independent secondary windings
• 208/120V output on both secondaries
• X1-X2-X3 winding system
• Y1-Y2-Y3 winding system
• Flexible load distribution
• Enhanced system redundancy
• Multiple circuit capability
• Load balancing options

Dry Type Construction:

• No oil or flammable liquids
• Fire-resistant operation
• Indoor installation approved
• Reduced environmental concerns
• Minimal maintenance requirements
• No leak potential
• Safe for occupied spaces
• Class 220 insulation system

Voltage Tap Flexibility:

• Five tap positions available
• 456V to 504V adjustment range
• 480V standard setting
• ±5% voltage adjustment capability
• Compensates for line voltage variations
• Optimizes system performance
• Field-adjustable configuration

Safety & Compliance:

• CSA LR 53763 certified
• Class 220 insulation
• 135°C temperature rise rated
• CU-AL connectors
• Multiple tap positions
• Professional engineering
• Type 1 enclosure
• Canadian standards compliance

SYSTEM COMPONENTS

Main Transformer:

• Square D Model CZTC0150 S000008
• 150 kVA capacity
• Catalog C150T68HFISCUZZNLPXSPCL
• Three-phase dry type design
• Dry type construction
• Class 220 insulation
• Type 1 enclosure
• Factory-tested assembly
• Serial Z1C-0004-29874

Primary Side:

• 480 VAC input voltage
• 3-Phase configuration
• H1-H2-H3 winding
• Five tap positions
• Voltage adjustment range: 456V-504V
• CU-AL connection lugs
• Complete terminations

Secondary Side 1:

• 208/120 VAC output
• X1-X2-X3 winding configuration
• 3-Phase power
• 60 Hz frequency
• CU-AL connectors
• Complete terminations

Secondary Side 2:

• 208/120 VAC output
• Y1-Y2-Y3 winding configuration
• 3-Phase power
• 60 Hz frequency
• CU-AL connectors
• Complete terminations

Enclosure & Protection:

• Type 1 enclosure (Series 1)

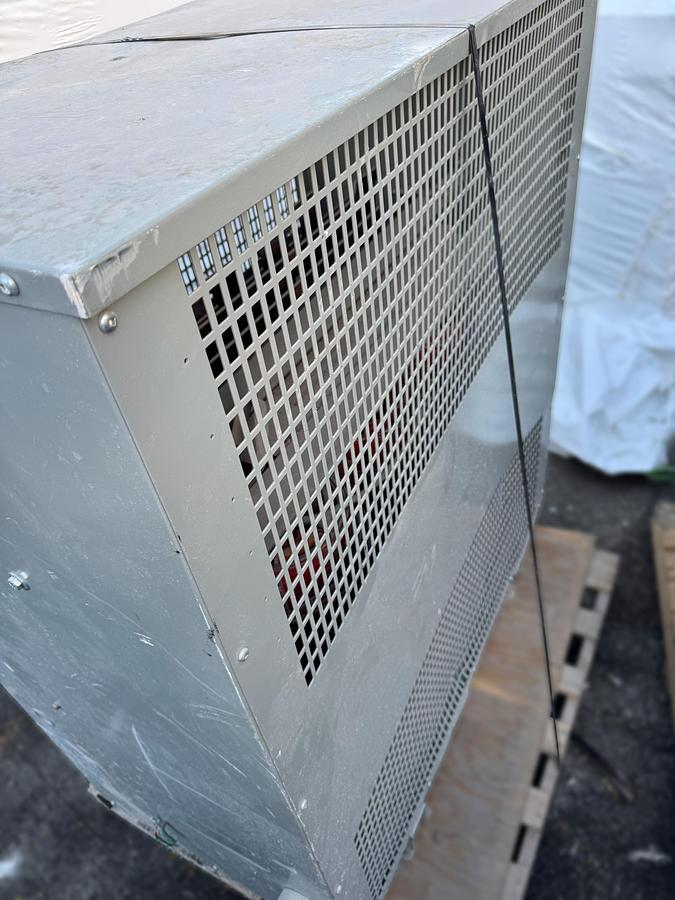

• Ventilated design
• Protective screening
• Lifting provisions
• Mounting base included
• Access panels
• Professional finish
• Weather-resistant construction

Connection System:

• Copper/Aluminum (CU-AL) lugs
• Primary termination points
• Dual secondary termination points
• Ground connection provisions
• Proper clearances
• Code-compliant spacing

Thermal Management:

• Natural convection cooling
• Ventilated enclosure design
• 135°C temperature rise rating
• Class 220 insulation system
• Ambient operation to 135°C elevation

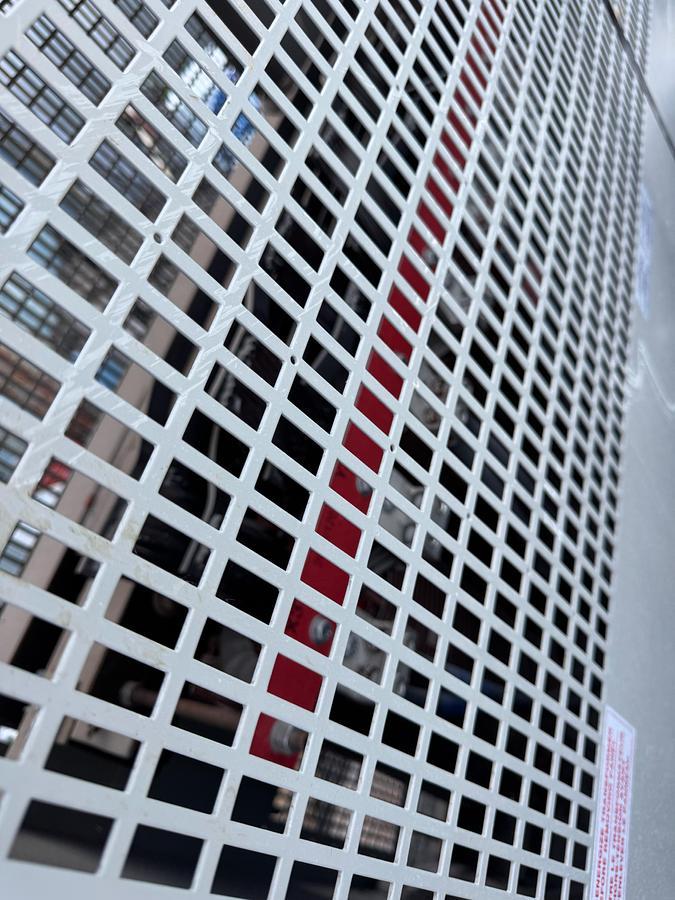

• Heat dissipation grilles
• No forced cooling required

SPECIFICATIONS SUMMARY

Transformer:

• Manufacturer: Square D (Schneider Electric)
• Catalog: C150T68HFISCUZZNLPXSPCL
• Model: CZTC0150 S000008
• Capacity: 150 kVA
• Weight: 976 kg (2,152 lbs)
• Type: 3-Phase Dry Type Transformer
• Enclosure: Type 1 (Series 1)
• Configuration: 3-Phase
• CSA: LR 53763
• Serial: Z1C-0004-29874

Primary Electrical:

• Voltage: 480 VAC
• Phase: 3-Phase (ANN)
• Winding: H1-H2-H3
• Taps: 456V, 468V, 480V, 492V, 504V
• Connection: KV BIL

Secondary Electrical:

• Voltage 1: 208/120 VAC (X1-X2-X3)
• Voltage 2: 208/120 VAC (Y1-Y2-Y3)
• Phase: 3-Phase
• Frequency: 60 Hz
• Connection: KV BIL

Insulation & Rating:

• Class: 220
• Temperature Rise: 135°C
• Ambient: 135°C elevation temp
• Impedance H-X,Y: 3.8% at 150 kVA
• Impedance H-X: 2.8% at 75 kVA
• Impedance H-Y: 2.0% at 75 kVA
• Connectors: CU-AL

Physical:

• Construction: Dry type
• Cooling: Natural convection
• Standards: CSA LR 53763 certified
• Mounting: Structural base
• Finish: Industrial gray
• Enclosure: Type 1 (Series 1)

ADDITIONAL INFORMATION

• Condition: Used - Reconditioned
• Manufacturer: Square D (Schneider Electric)
• Catalog Number: C150T68HFISCUZZNLPXSPCL
• Model: CZTC0150 S000008
• Capacity: 150 kVA
• Configuration: Three-Phase Dry Type Transformer
• Weight: 976 kg (2,152 lbs)
• Primary Voltage: 480 VAC, 3-Phase, H1-H2-H3 winding
• Secondary Voltage 1: 208/120 VAC, 3-Phase, X1-X2-X3 winding, 60 Hz
• Secondary Voltage 2: 208/120 VAC, 3-Phase, Y1-Y2-Y3 winding, 60 Hz
• Tap Positions: Five taps available - 504V, 492V, 480V (standard), 468V, 456V
• Insulation Class: 220
• Temperature Rating: 135°C temperature rise at 135°C ambient elevation temperature

Impedance Ratings:

• H-X,Y: 3.8% at 150 kVA 135°C
• H-X: 2.8% at 75 kVA 135°C
• H-Y: 2.0% at 75 kVA 135°C

Connectors: CU-AL (Copper/Aluminum compatible)

Enclosure: Type 1 (Boitier/Enclos. Série 1)

Serial Number: Z1C-0004-29874

Asset Identification: T-10913

Features:

• Dry type transformer design
• Dual independent secondary windings
• Five-position voltage tap adjustment
• Split secondary voltage capability (208/120V on both secondaries)
• Type 1 enclosure
• Class 220 high-temperature insulation system
• Copper/aluminum connection compatibility
• CSA LR 53763 certified construction
• Natural convection cooling
• Maintenance-free operation
• Multiple impedance ratings for flexible loading
• Suitable for indoor installation
• Ideal for commercial and industrial loads
• Load balancing capability with dual secondaries
• Enhanced system redundancy
