Hurst 4VT-X-30-150 Vertical Tubeless Steam Boiler 30 HP 150 PSI 1035 lbs/hr 2023

Overview

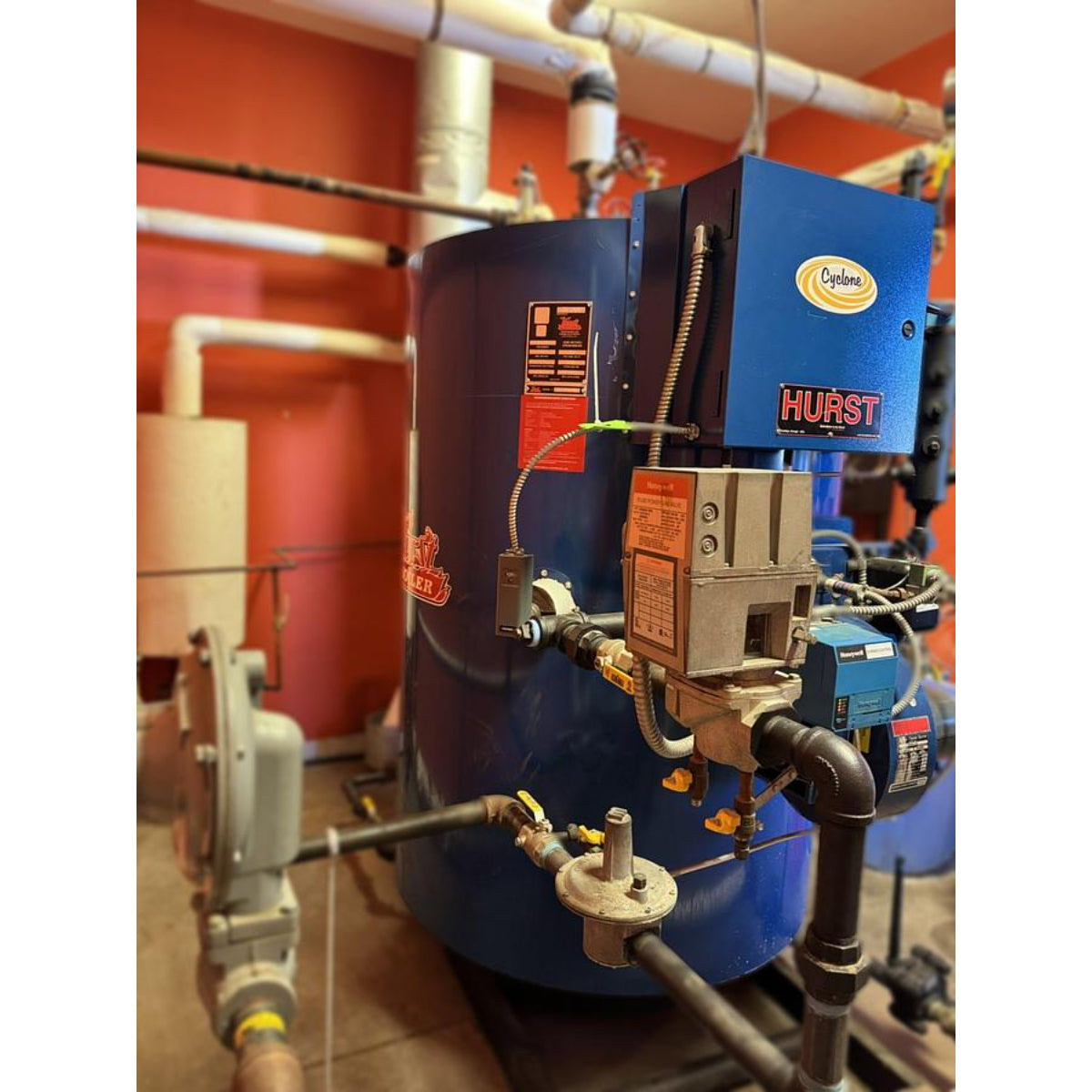

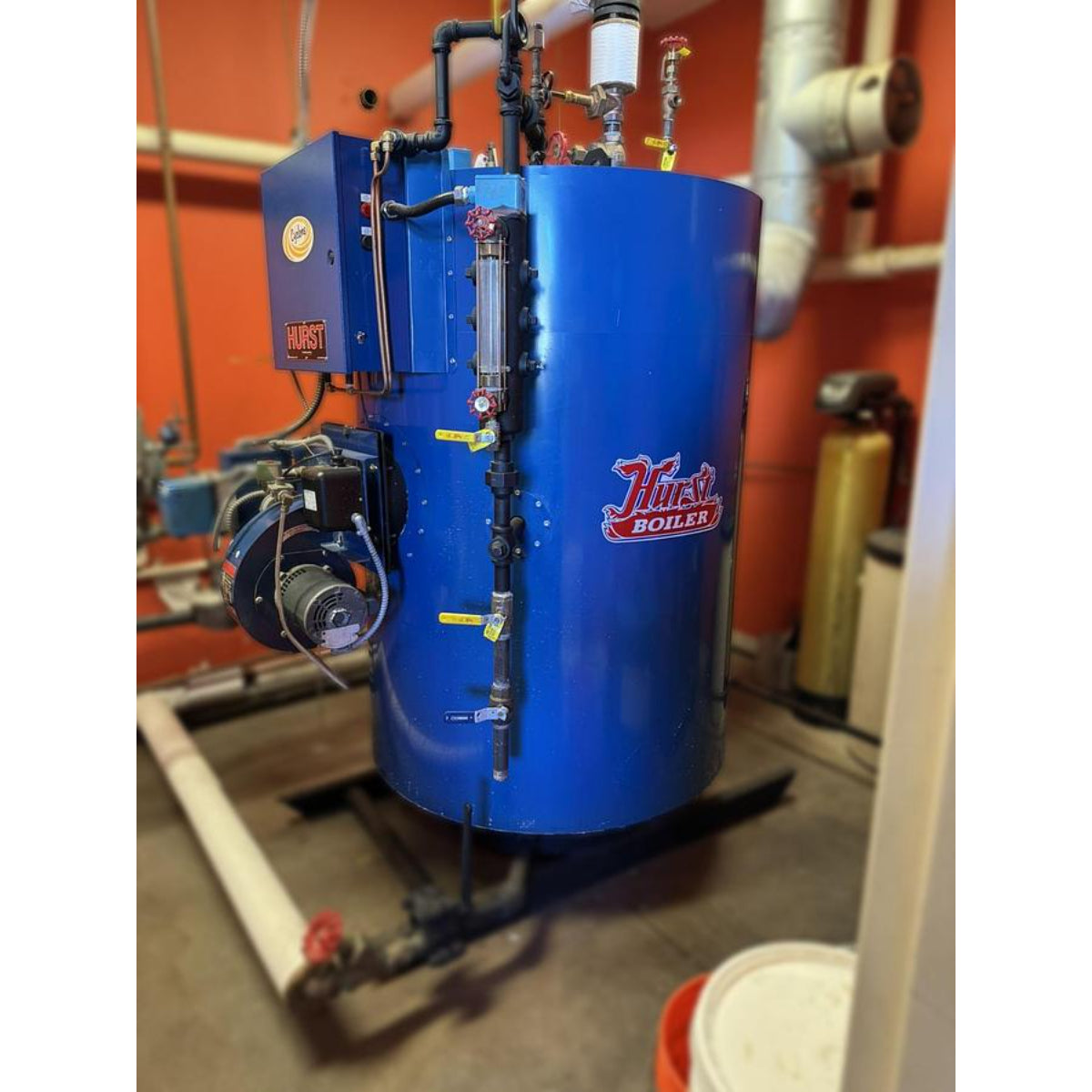

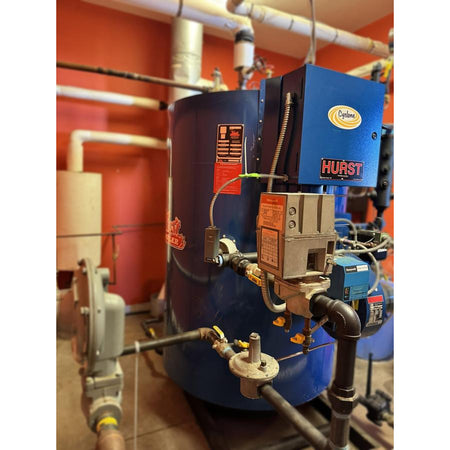

This Hurst 4VT-X-30-150 vertical tubeless steam boiler was manufactured in July 2023 and is ASME Section I certified by Hurst Boiler & Welding Co., Inc. With 30 horsepower capacity (1,035 lbs/hr steam output) and 150 PSI maximum working pressure, this complete system includes the boiler, feedwater make-up tank, feedwater storage tank, and steam pressure reducer. National Board certified (NB 26139) with 86 square feet of heating surface, this system features Hurst's vertical tubeless design with Cyclone burner technology and integrated feedwater system.

Design and Performance

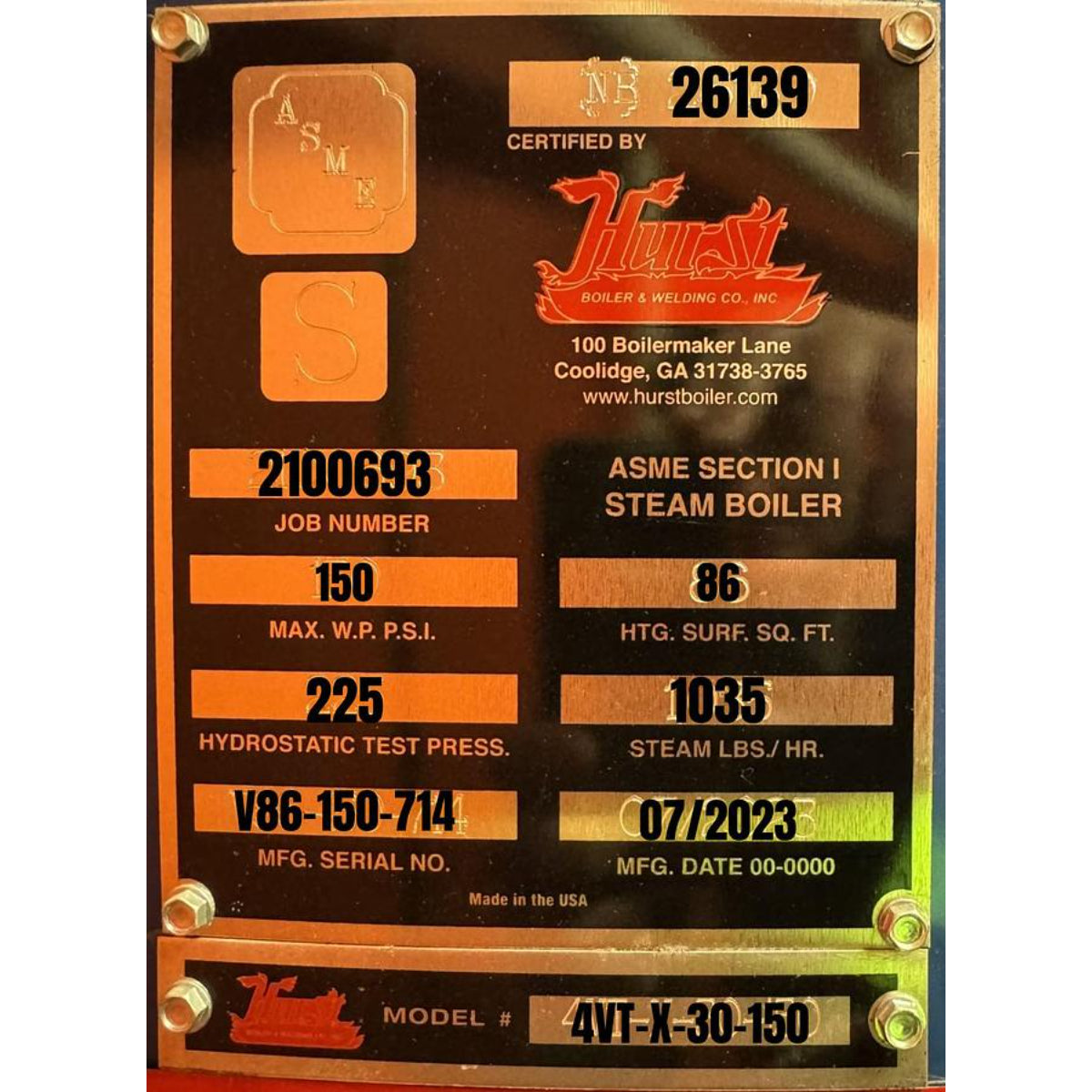

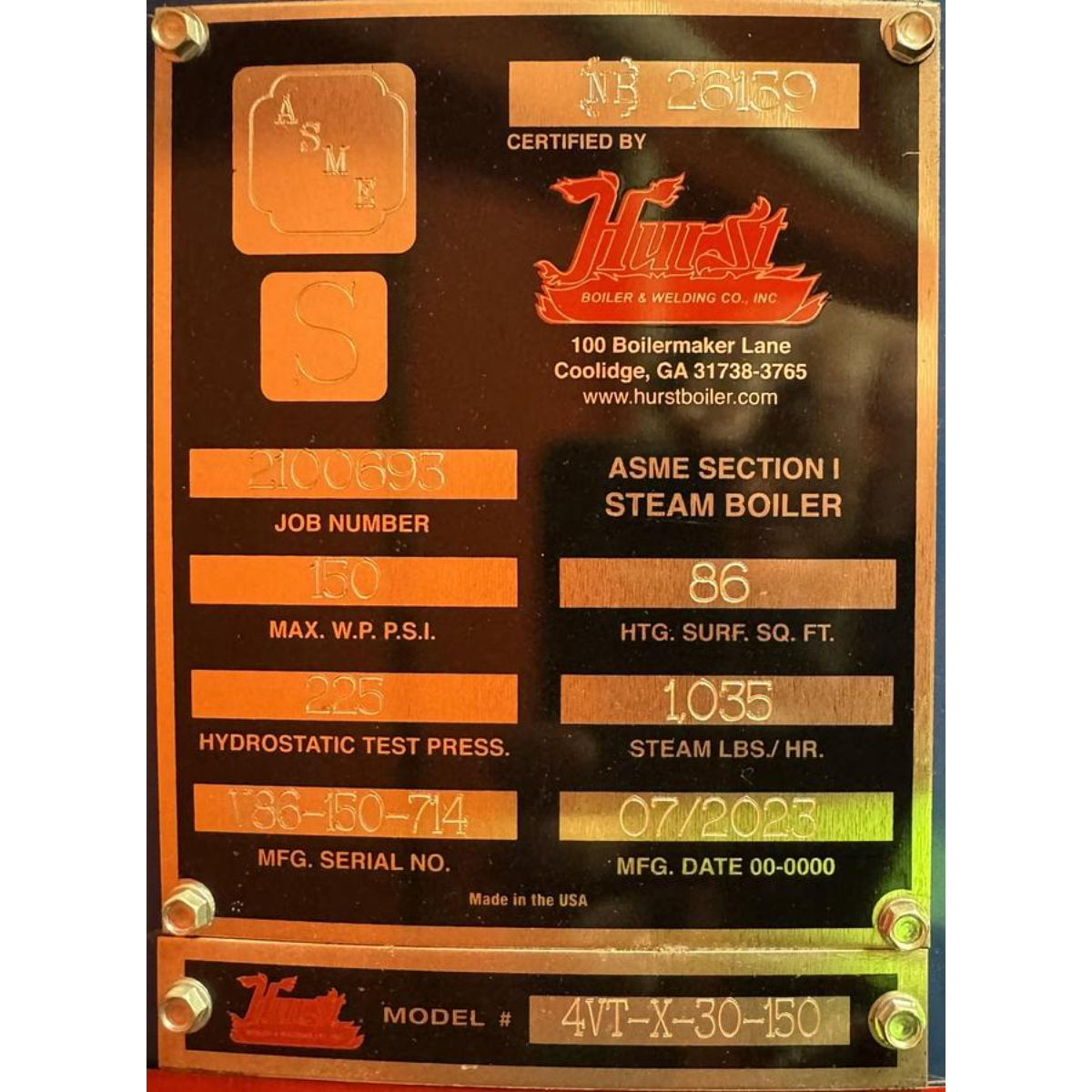

Boiler Specifications:

• Manufacturer: Hurst Boiler & Welding Co., Inc.
• Model: 4VT-X-30-150
• National Board Number: 26139
• Serial Number: V86-150-714
• Job Number: 2100693
• Manufacturing Date: 07/2023
• Certification: ASME Section I Steam Boiler

Pressure and Capacity Ratings:

• Maximum Working Pressure: 150 PSI
• Hydrostatic Test Pressure: 225 PSI
• Steam Output: 1,035 lbs/hr
• Horsepower: 30 HP
• Heating Surface: 86 sq.ft.

Construction:

• Type: Vertical tubeless steam boiler
• Design: 4-pass vertical fire tube
• Burner: Cyclone burner system
• Jacket: Blue powder-coated steel
• Controls: Integrated control panel
• Water Level: Sight glass gauge
• Insulation: Factory insulated

System Components:

• Hurst 4VT-X-30-150 vertical steam boiler
• Cyclone burner assembly
• Integrated control panel

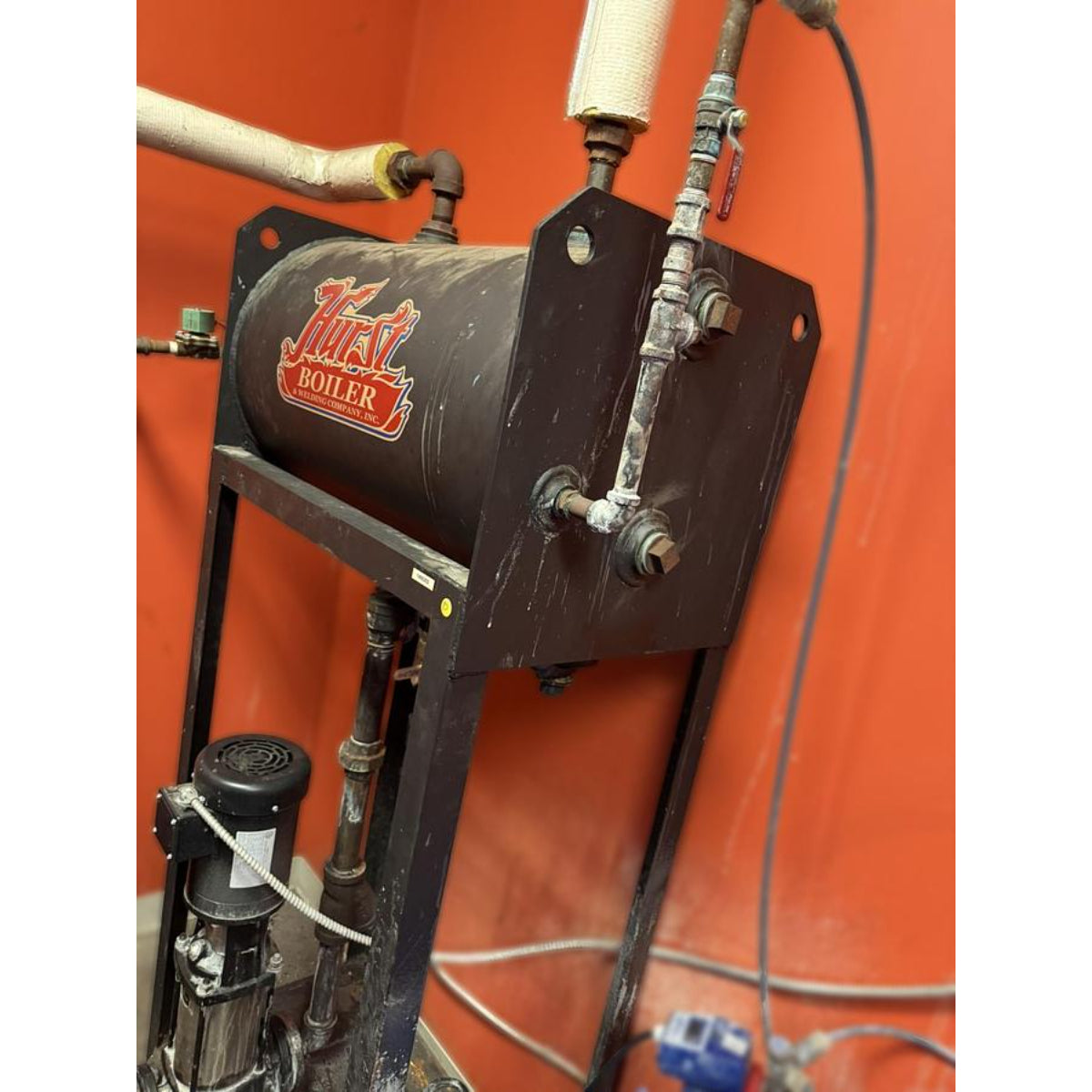

• Feedwater make-up tank
• Feedwater storage tank
• Steam pressure reducer
• Safety relief valve
• Pressure gauges
• Water level sight glass
• Piping connections and valves
• Mounting skid

Control Features:

• Honeywell control system
• Burner management controls
• Operating status indicators
• Safety interlocks
• Water level controls
• Feedwater controls
• Pressure monitoring

Safety Features:

• ASME Section I certified
• National Board registered (NB 26139)
• Safety relief valve
• Low water cutoff
• Flame safeguard system
• High pressure limit
• Pressure monitoring gauges

Key Specifications

• Condition: NEW - 2023 Manufacture
• Brand: Hurst Boiler
• Model: 4VT-X-30-150
• Serial Number: V86-150-714
• Job Number: 2100693
• National Board: 26139
• Manufacturing Date: 07/2023
• Equipment Type: Vertical Tubeless Steam Boiler

Performance Data:

• Horsepower: 30 HP
• Steam Output: 1,035 lbs/hr
• Maximum Working Pressure: 150 PSI
• Hydrostatic Test Pressure: 225 PSI
• Heating Surface: 86 sq.ft.

Physical Specifications:

• Configuration: Vertical tubeless design
• Burner: Cyclone burner system
• Jacket: Blue powder-coated steel
• Mounting: Skid base
• Controls: Integrated panel with Honeywell system

System Includes:

• Hurst vertical steam boiler
• Feedwater make-up tank
• Feedwater storage tank
• Steam pressure reducer
• All necessary piping and valves

Ideal Applications

• Commercial Laundries
• Dry Cleaning Facilities
• Food Processing Plants
• Breweries and Distilleries
• Pharmaceutical Manufacturing
• Laboratory Steam Supply
• Healthcare Facilities
• Small Manufacturing Plants
• Institutional Kitchens
• Chemical Processing
• Textile Processing
• Sterilization Applications
• Process Steam Requirements

Benefits

• NEW 2023 manufacture
• 30 HP steam capacity
• Vertical tubeless design
• 150 PSI operating pressure
• ASME Section I certified
• National Board registered
• Cyclone burner technology
• Compact vertical footprint
• Complete system included
• Feedwater make-up tank included
• Feedwater storage tank included
• Steam reducer included
• Integrated feedwater system
• Honeywell controls
• Factory insulated
• Made in USA
• Ready for installation

Additional Information

• Condition: NEW - Manufactured 07/2023
• Manufacturer: Hurst Boiler & Welding Co., Inc., Coolidge, GA 31738-3765
• Model: 4VT-X-30-150
• Serial Number: V86-150-714
• Job Number: 2100693
• National Board Number: 26139
• Manufacturing Date: 07/2023

Capacity Ratings:

• Horsepower: 30 HP
• Maximum Working Pressure: 150 PSI
• Hydrostatic Test Pressure: 225 PSI
• Steam Output: 1,035 lbs/hr
• Heating Surface: 86 sq.ft.

Certification:

• ASME Section I Steam Boiler
• National Board Certified (NB 26139)

System Includes:

• Hurst 4VT-X-30-150 vertical steam boiler
• Feedwater make-up tank
• Feedwater storage tank
• Steam pressure reducer
• Complete piping and valve package

Construction: Vertical tubeless fire tube design with Cyclone burner

Made In: USA (Coolidge, Georgia)
