Foster Wheeler 7000 HP Water Tube Boiler System - 712 PSI with NAT-COM Low NOx Burner (2001)

Overview

This Foster Wheeler water tube boiler system was manufactured in 2001 and certified by Foster Wheeler Limited. With 7000 horsepower capacity (207,014 lbs/hr steam capacity) and 712 PSIG maximum allowable working pressure, this industrial boiler system includes an integrated waterwall, economizer, and NAT-COM low NOx industrial burner. The complete package features multiple heating surfaces totaling over 28,000 square feet and a comprehensive control system.

Design and Performance

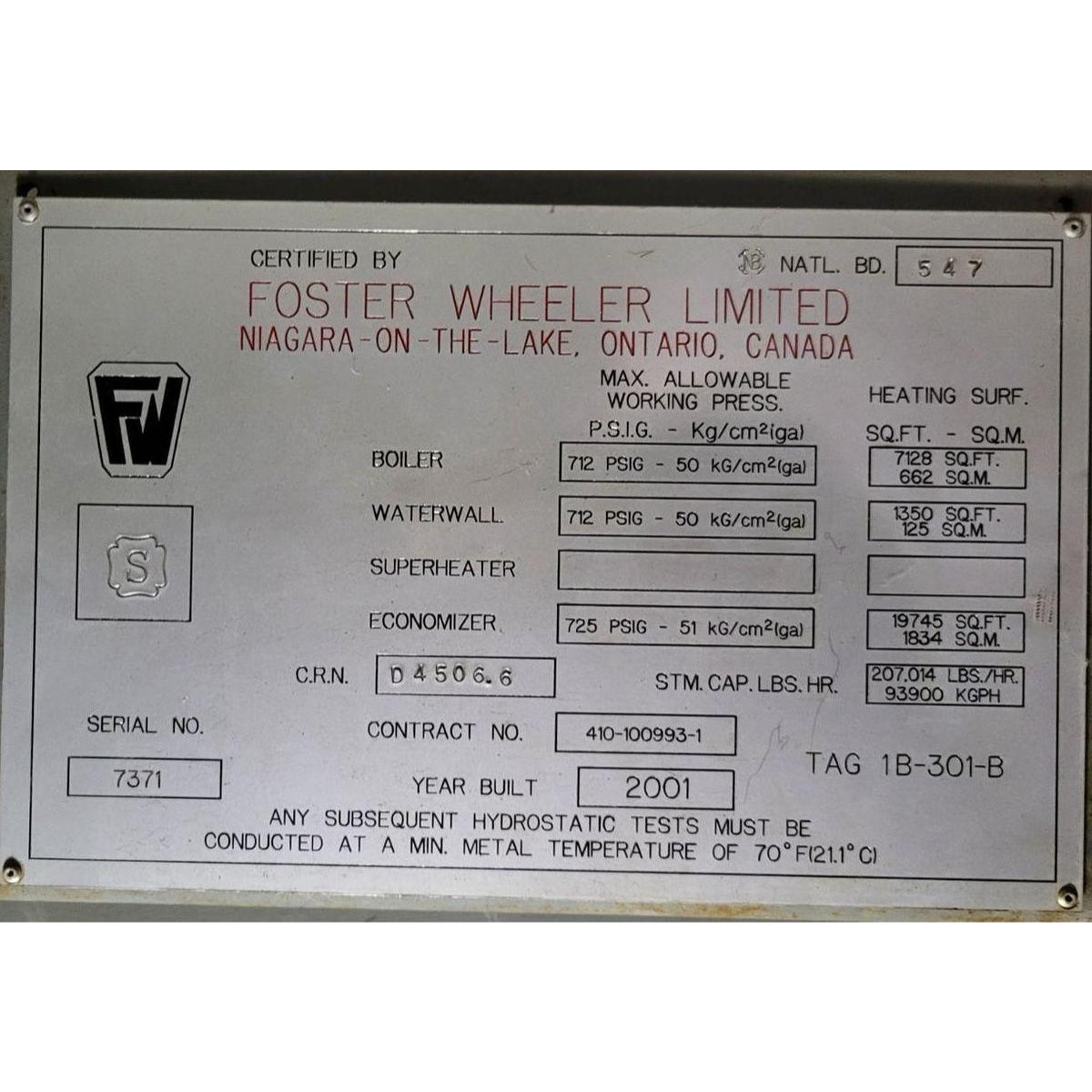

Boiler Specifications:

• Certified By: Foster Wheeler Limited
• National Board Number: 547
• Serial Number: 7371
• Contract Number: 410-100993-1
• Year Built: 2001
• CRN: D 4506.6
• Tag: 1B-301-B

Pressure and Capacity Ratings:

• Boiler MAWP: 712 PSIG (50 kG/cm²[ga])
• Boiler Heating Surface: 7128 sq.ft. (662 sq.m.)
• Waterwall MAWP: 712 PSIG (50 kG/cm²[ga])
• Waterwall Heating Surface: 1350 sq.ft. (125 sq.m.)
• Economizer MAWP: 725 PSIG (51 kG/cm²[ga])
• Economizer Heating Surface: 19,745 sq.ft. (1834 sq.m.)
• Steam Capacity: 207,014 lbs/hr (93,900 kgph)
• Horsepower: 7000 HP

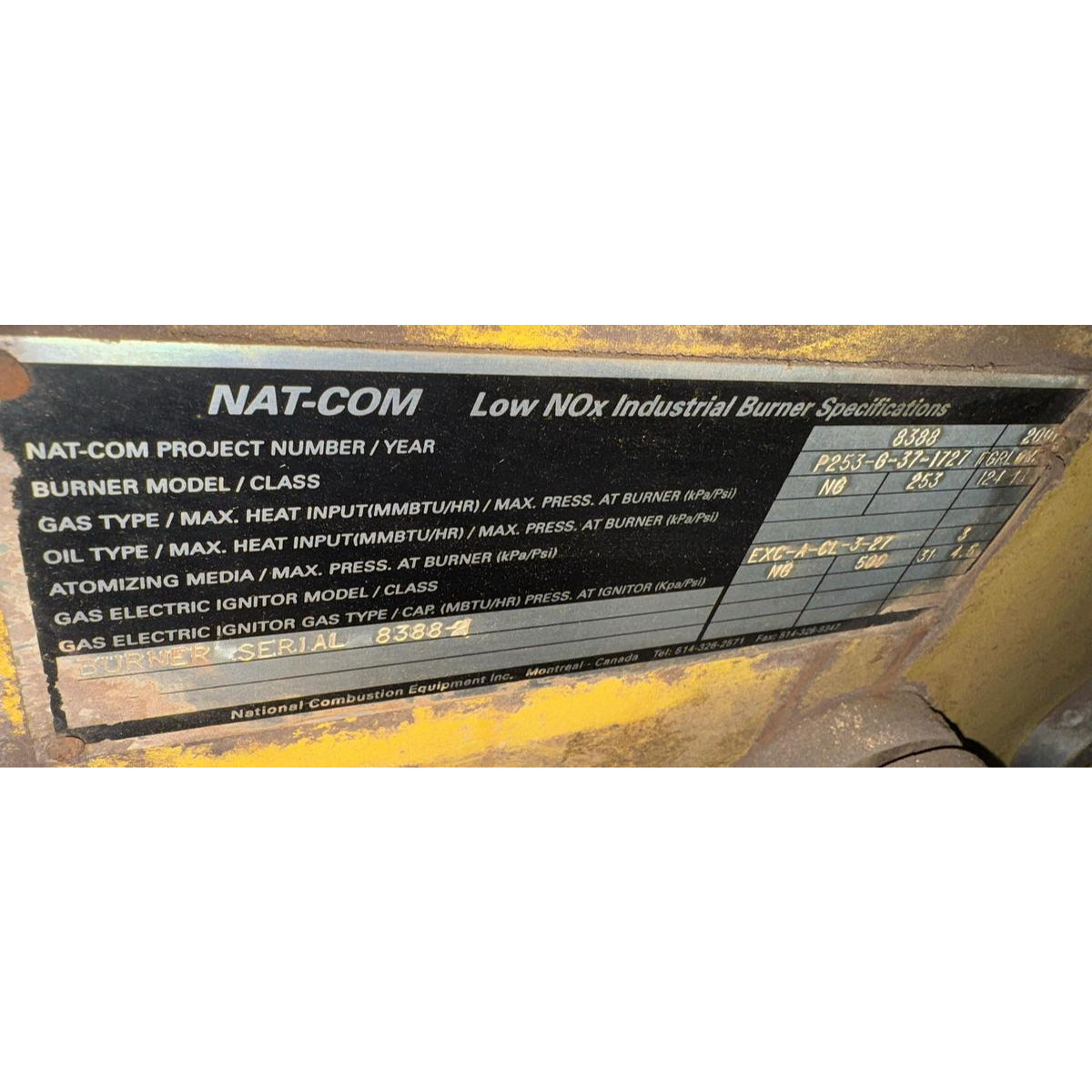

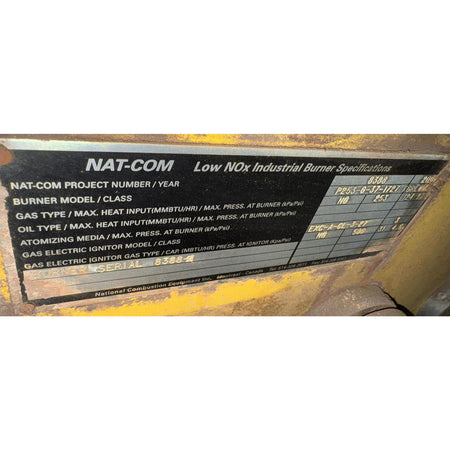

Burner Specifications:

• Manufacturer: NAT-COM (National Combustion Equipment Inc.)
• Type: Low NOx Industrial Burner
• NAT-COM Project Number: 8388
• Burner Model/Class: P265-6-512-W2V DBLH2
• Serial Number: 8388-A
• Gas Type: NG
• Oil Type: EXP-A-04-5-11

Construction:

• Water tube boiler design
• Integrated waterwall sections
• Economizer system
• Multiple tube sheets
• Yellow painted structural steel platforms and piping
• Access platforms and walkways
• Insulated panels

System Components:

• Foster Wheeler water tube boiler
• Integrated waterwall system
• Economizer
• NAT-COM low NOx burner
• Control panel system
• Pressure gauges
• Valve manifolds
• Yellow piping network
• Access platforms and ladders
• Insulation panels
• Structural support framework

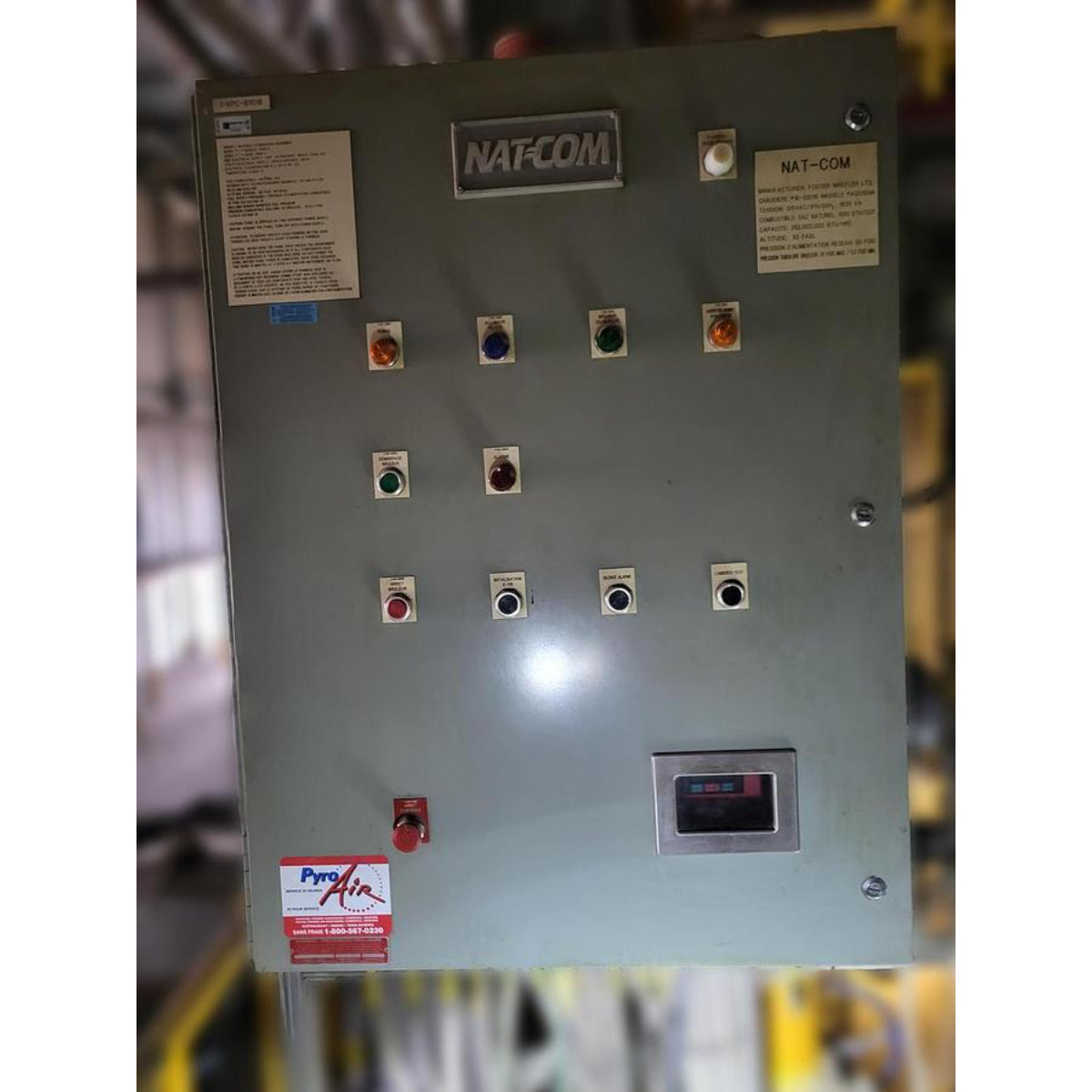

Control Features:

• NAT-COM control panel
• Multiple control switches
• Status indicator lights
• Emergency stop capability
• Pressure monitoring systems

Safety Features:

• Pressure relief systems
• National Board certification (547)
• CRN registration (D 4506.6)
• Safety valves
• Access platforms with railings

Testing Requirements:

• Hydrostatic test minimum metal temperature: 70°F (21.1°C)

Key Specifications

• Condition: Used - 2001 Build
• Brand: Foster Wheeler
• Burner: NAT-COM Low NOx
• Serial Number: 7371
• National Board: 547
• Year Built: 2001
• Equipment Type: Water Tube Boiler System

Performance Data:

• Horsepower: 7000 HP
• Steam Capacity: 207,014 lbs/hr (93,900 kgph)
• Boiler MAWP: 712 PSIG (50 kG/cm²[ga])
• Waterwall MAWP: 712 PSIG (50 kG/cm²[ga])
• Economizer MAWP: 725 PSIG (51 kG/cm²[ga])

Heating Surfaces:

• Boiler: 7128 sq.ft. (662 sq.m.)
• Waterwall: 1350 sq.ft. (125 sq.m.)
• Economizer: 19,745 sq.ft. (1834 sq.m.)
• Total Heating Surface: 28,223 sq.ft.

Physical Specifications:

• Configuration: Water tube boiler with waterwall and economizer
• Platforms: Yellow painted steel with railings
• Piping: Yellow painted
• Insulation: Panel construction

Burner Specifications:

• Model: P265-6-512-W2V DBLH2
• Type: Low NOx industrial burner
• Project Number: 8388
• Serial: 8388-A

Ideal Applications

• Power Generation
• Industrial Process Steam
• Manufacturing Facilities
• Chemical Processing
• Pharmaceutical Production
• Food Processing Plants
• Pulp and Paper Mills
• Refineries
• Petrochemical Facilities
• District Heating Systems
• Large Industrial Complexes
• High-Pressure Steam Requirements

Benefits

• 2001 manufacture
• 7000 HP capacity
• 712 PSIG operating pressure
• Water tube design
• Integrated waterwall system
• Large economizer (19,745 sq.ft.)
• Low NOx burner technology
• National Board certified
• CRN registered
• High steam capacity (207,014 lbs/hr)
• Comprehensive control system

Additional Information

• Condition: Used - 2001 Manufacture
• Manufacturer: Foster Wheeler Limited
• Serial Number: 7371
• National Board: 547
• Contract Number: 410-100993-1
• Year Built: 2001
• CRN: D 4506.6
• Tag: 1B-301-B
• Horsepower: 7000 HP
• Steam Capacity: 207,014 lbs/hr (93,900 kgph)
• Boiler MAWP: 712 PSIG (50 kG/cm²[ga])
• Waterwall MAWP: 712 PSIG (50 kG/cm²[ga])
• Economizer MAWP: 725 PSIG (51 kG/cm²[ga])
• Boiler Heating Surface: 7128 sq.ft. (662 sq.m.)
• Waterwall Heating Surface: 1350 sq.ft. (125 sq.m.)
• Economizer Heating Surface: 19,745 sq.ft. (1834 sq.m.)
• Total Heating Surface: 28,223 sq.ft.
• Burner Manufacturer: NAT-COM
• Burner Model: P265-6-512-W2V DBLH2
• Burner Serial: 8388-A
• Construction: Water tube design
• Made In: Canada
