400 HP Cleaver Brooks Steam Boiler 200 PSI 1984 Model CB200-400

SKU: W66725
Out of stock
Inspected & Tested
Technical Support
Industry Leading Quality
Simple fun AI assistant icon

Ask an expert!

Chat
⚠️ This specific unit is out of stock
When requesting a quote, please select "Join Waitlist" to be notified when similar equipment becomes available.

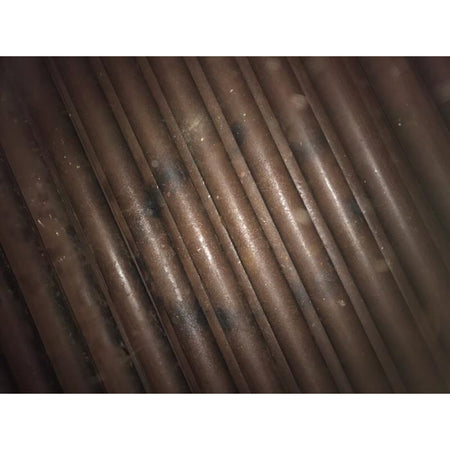

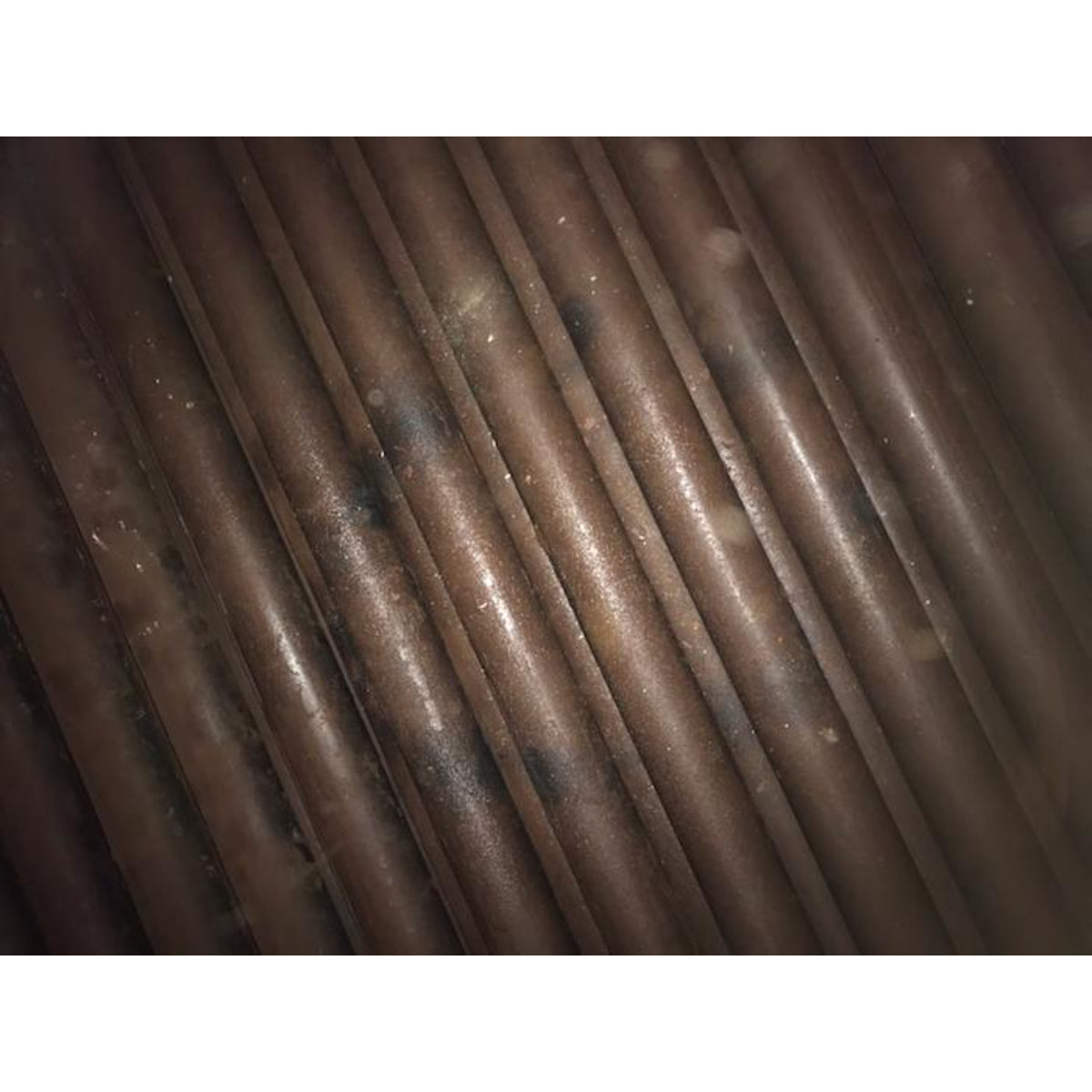

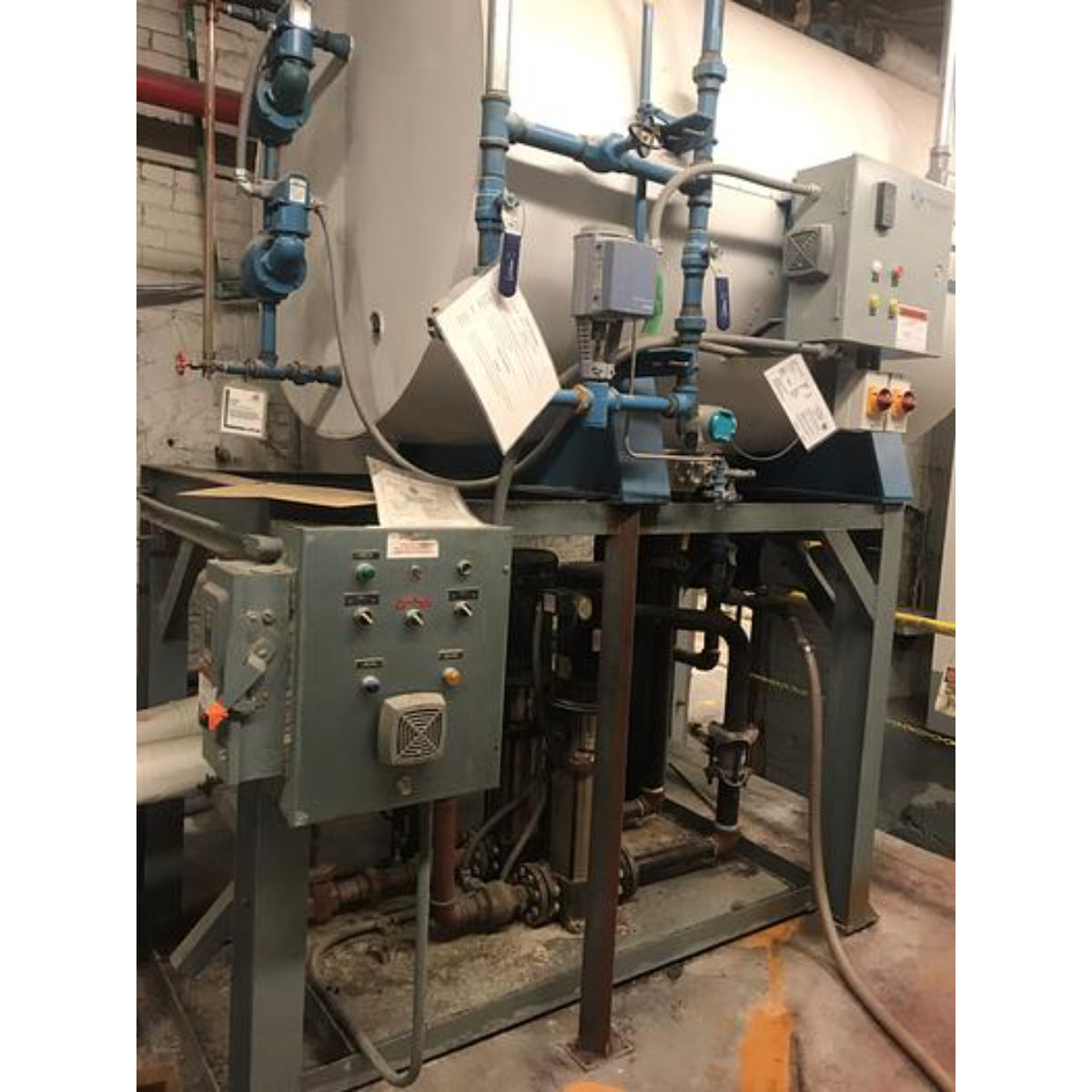

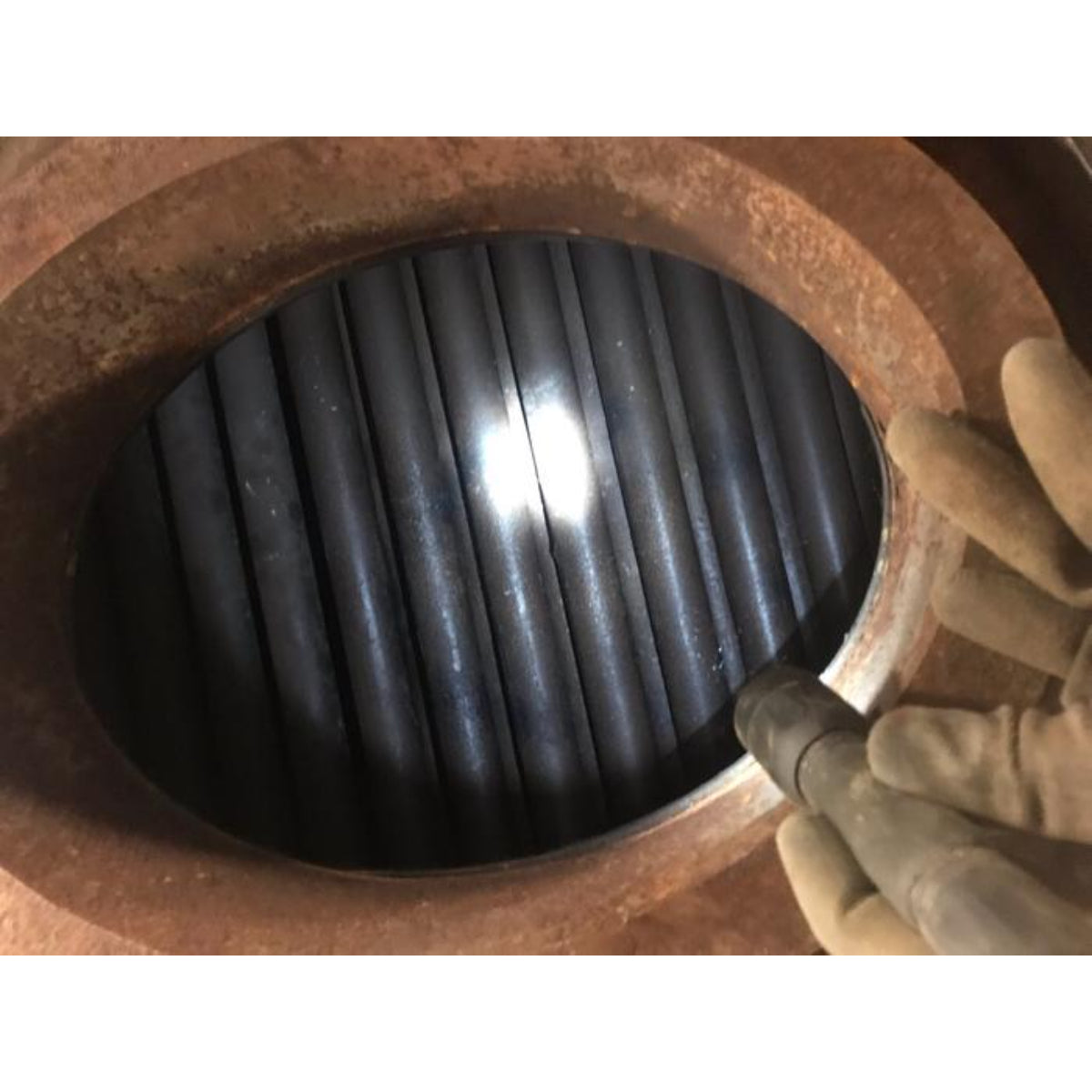

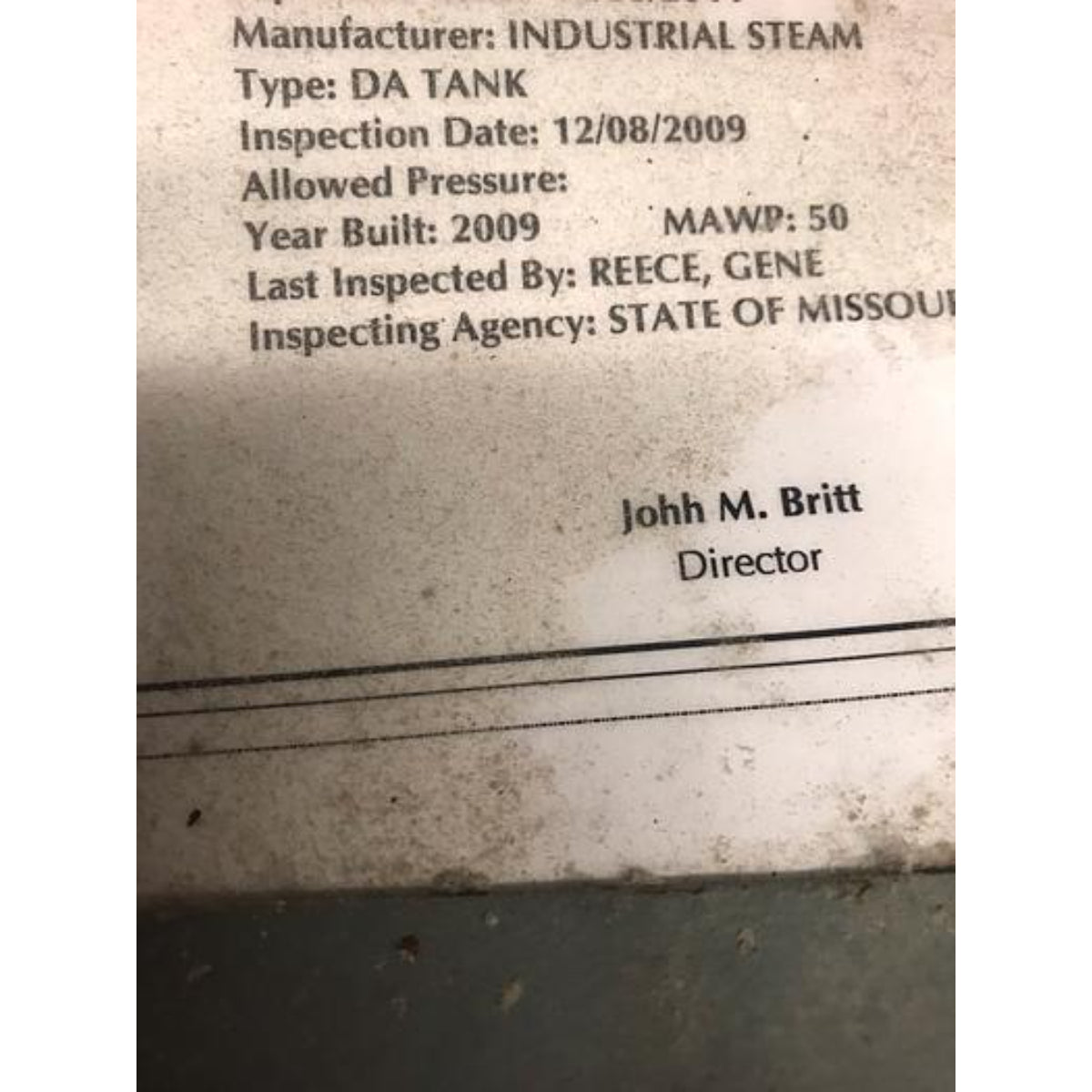

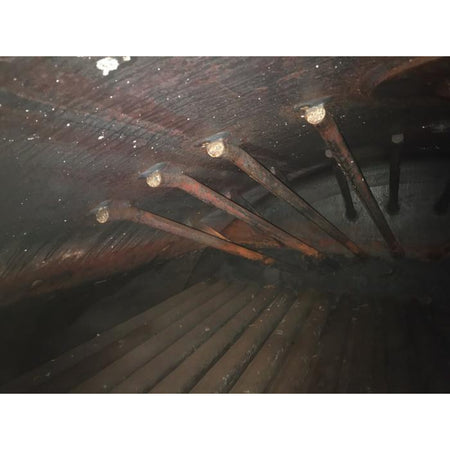

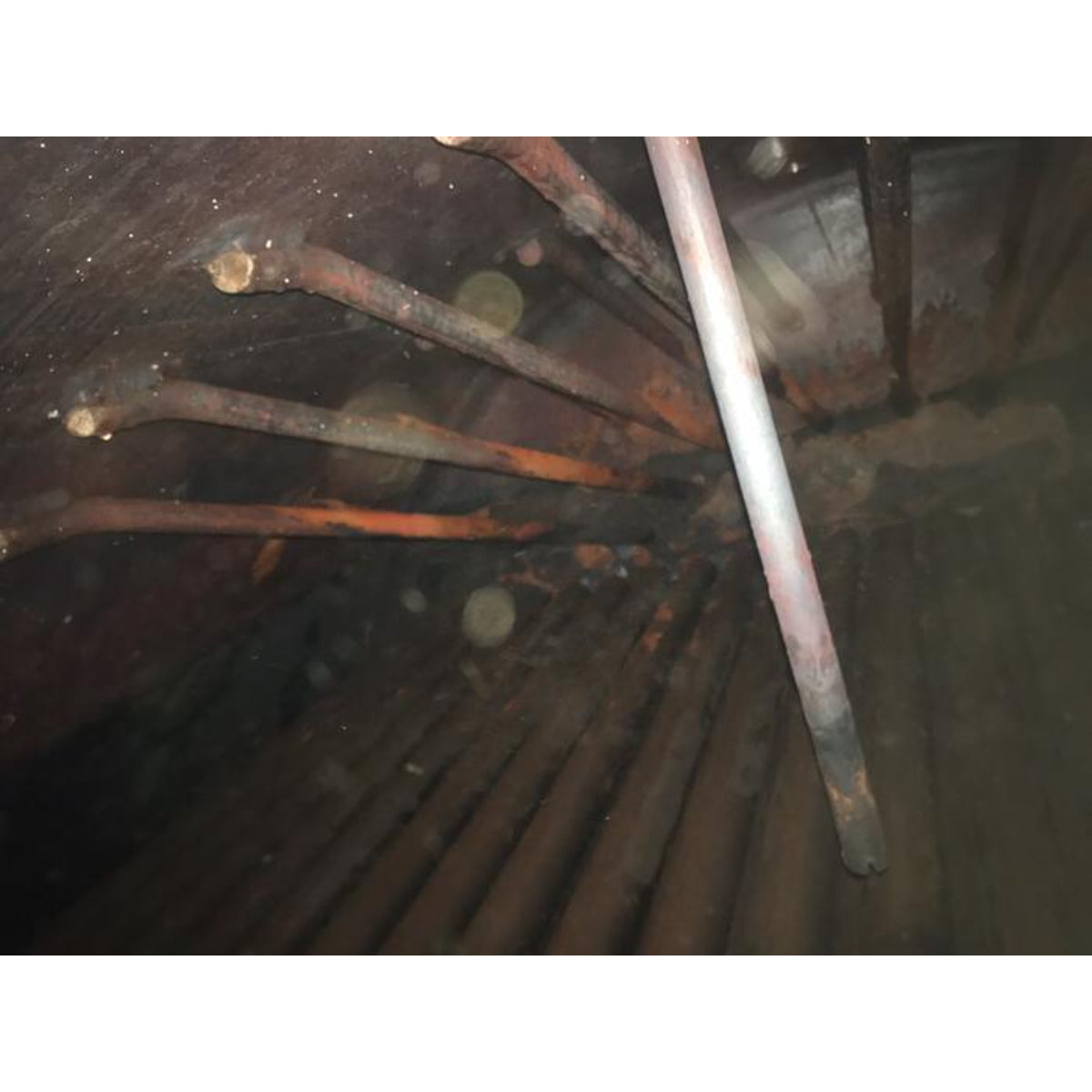

Used Cleaver Brooks Steam Boiler, 13,800 steam lbs/hr, 16,738,000 BTU/hr, Model CB200-400, 400 HP, MAWP 400 PSI, Fuel Natural Gas/Oil Fired, Built 1984. This boiler is ready to go back into service! Its retubed 2008 and as you can see the tubes are in perfect condition. We would like to sell the AD take and boiler together if possible.

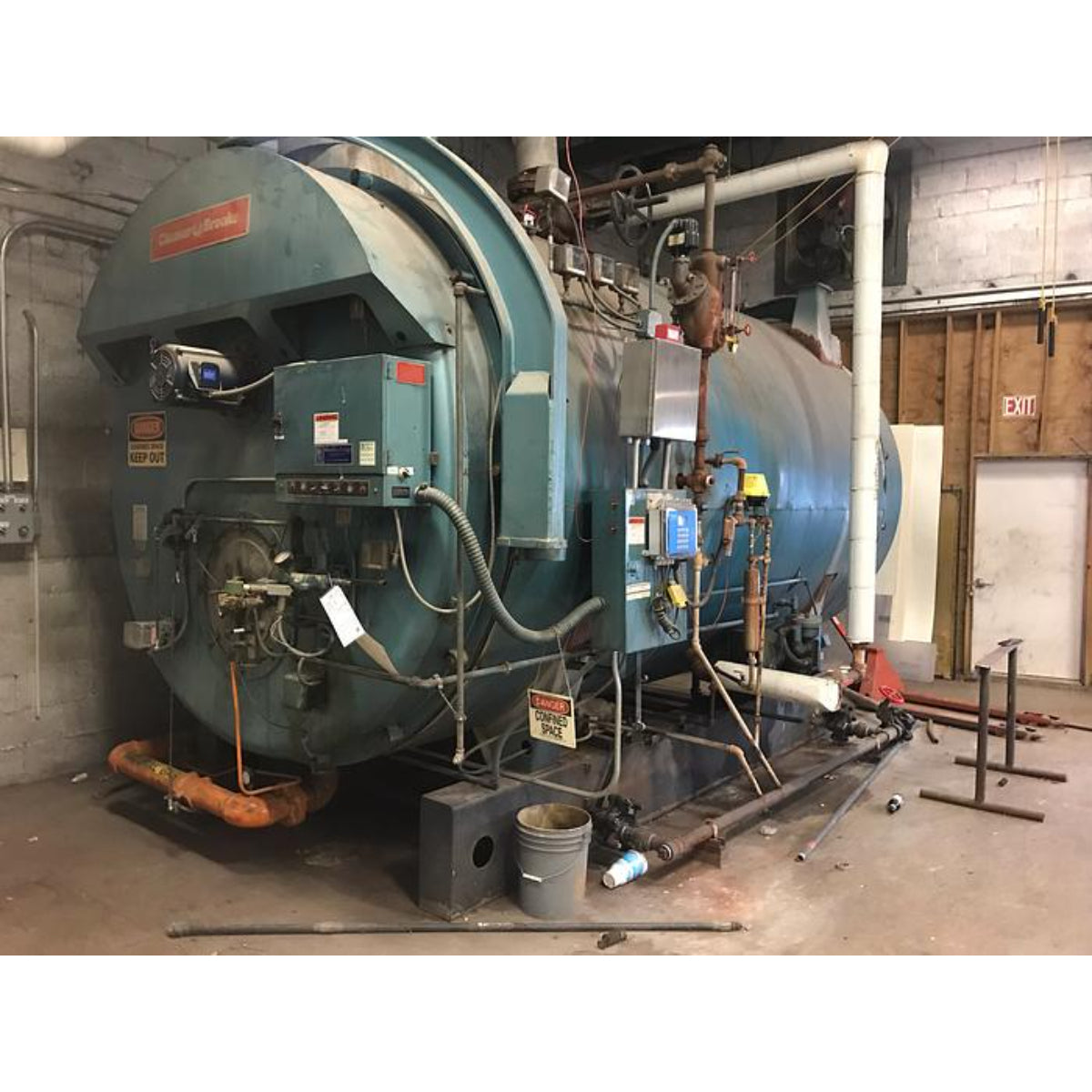

Cleaver Brooks 400 HP 200 PSI High Pressure Steam Boiler

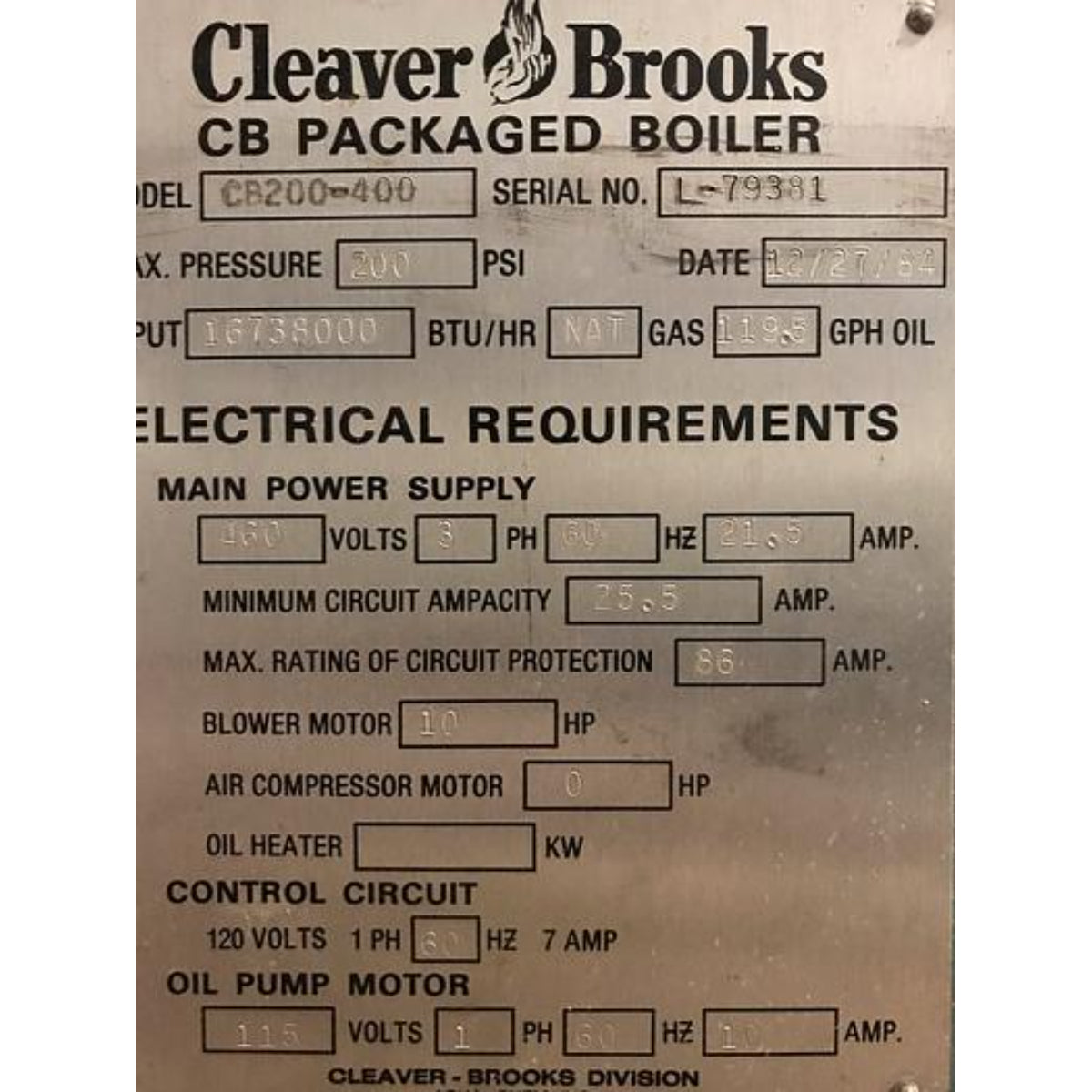

Equipment Description


Manufacturer: Cleaver Brooks

Model: CB200-400

Boiler Horsepower: 400 HP

Boiler Type: Steam Boiler

Fuel Type: Natural Gas/Oil

Design Pressure or Maximum Allowable Working Pressure: 200 PSI

Heating Capacity: 16,738,000 BTU/hr

Steam Capacity: 13,800 steam Lbs/hr

Year Built: 1984

Serial No: L-79381

GPH Oil: 119.5


Electrical Requirements


Main Power Supply

Voltage: 460V

Phase: 3 PH

Hertz: 60Hz

Ampacity: 21.5 AMP

Minimum Circuit Ampacity: 25.5 AMP

Maximum Rating of Circuit Protection: 86 AMP


Blower Motor

Horsepower: 10 HP


Air Compressor Motor

Horsepower: 0 HP


Oil Heater: N/A


Control Circuit

Volts: 120V

Phase: 1 PH

Hertz: 60 HZ

Ampacity: 7 AMP


Oil Pump Motor

Volts: 115V

Phase: 1 PH

Hertz: 60Hz

Ampacity: 10 AMP


Overall Dimensions

Length: 17.5 ft

Width: 10.25 ft

Height: 10.5 ft

Boiler Weight: 38,300 lbs
