750 HP Hurst Boiler S3750-150-1 Firetube Steam Boiler #BSCB100HP301
Stock #: BSCB100HP301
Specifications
ManufacturerHurst Boiler
ModelS3750-150-1
TypeFiretube
Horsepower750 HP
Design Pressure150 PSI
OutputSteam
FuelNatural Gas
Year Built1994
ConditionUsed
PriceCall for Price
LocationOhio
AvailabilityAvailable
National Board #2293
Stock NumberBSCB100HP301
Description
OVERVIEW

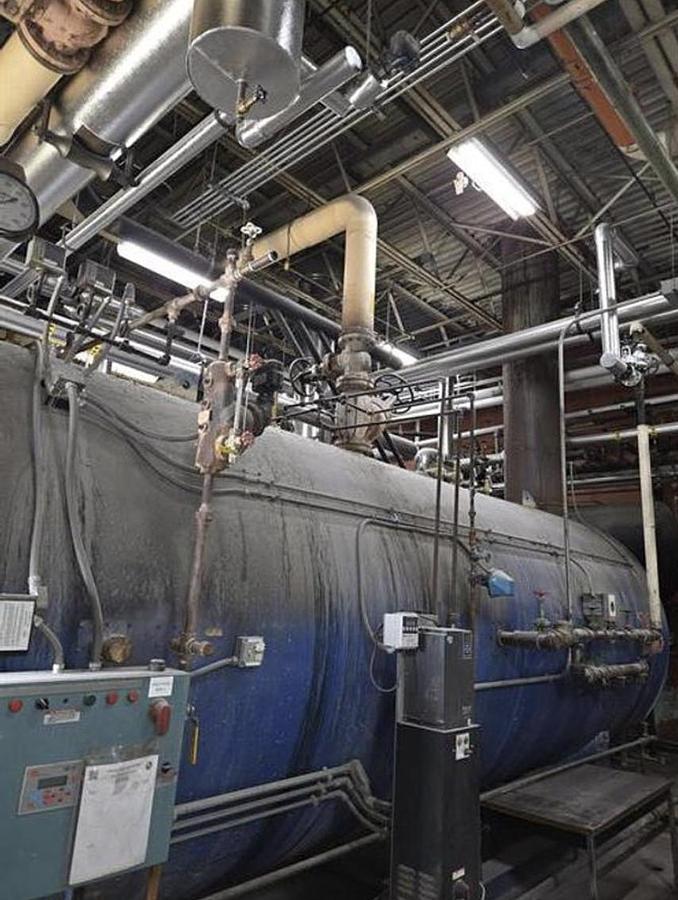

This is a Hurst Boiler & Welding Co., Inc. Model S3750-150-1 packaged firetube steam boiler, rated 750 boiler horsepower. Factory-built by Hurst Boiler & Welding, Coolidge, Georgia, in 1994. A 3-pass wetback Scotch marine design. Natural gas fired. Maximum working pressure 150 PSI steam. Good running order, currently installed. Contact us to schedule an inspection.

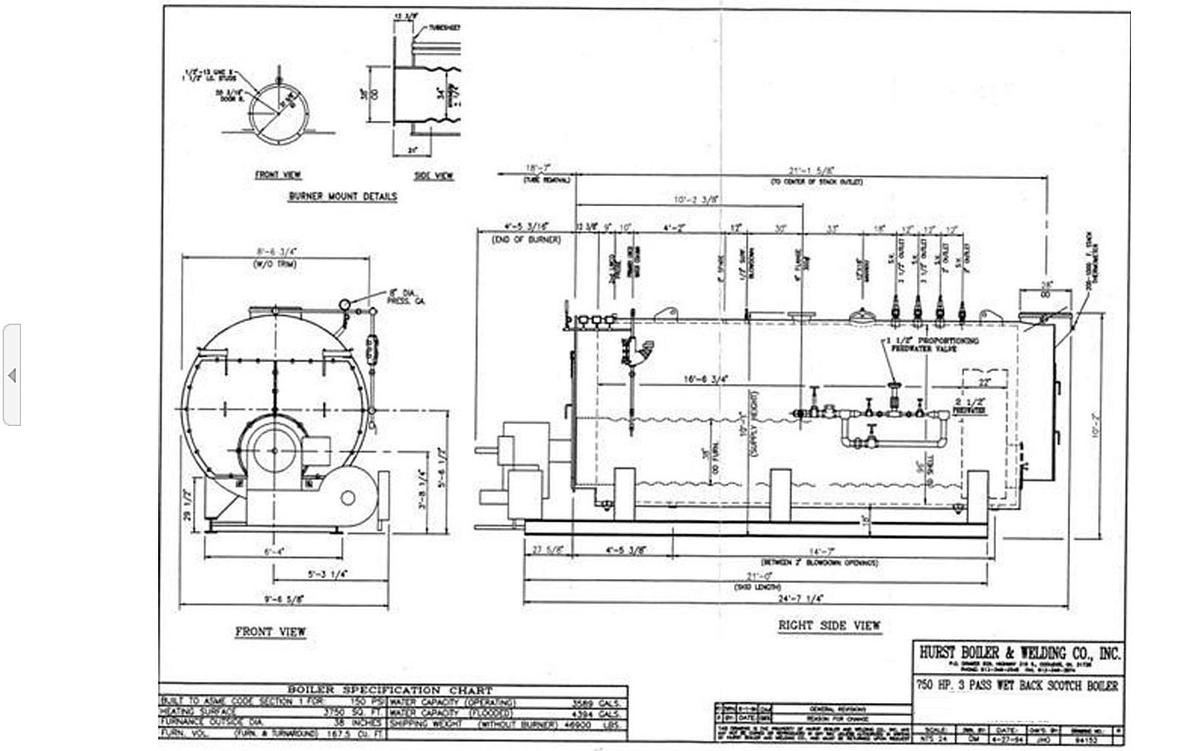

EQUIPMENT SPECIFICATIONS
Boiler:

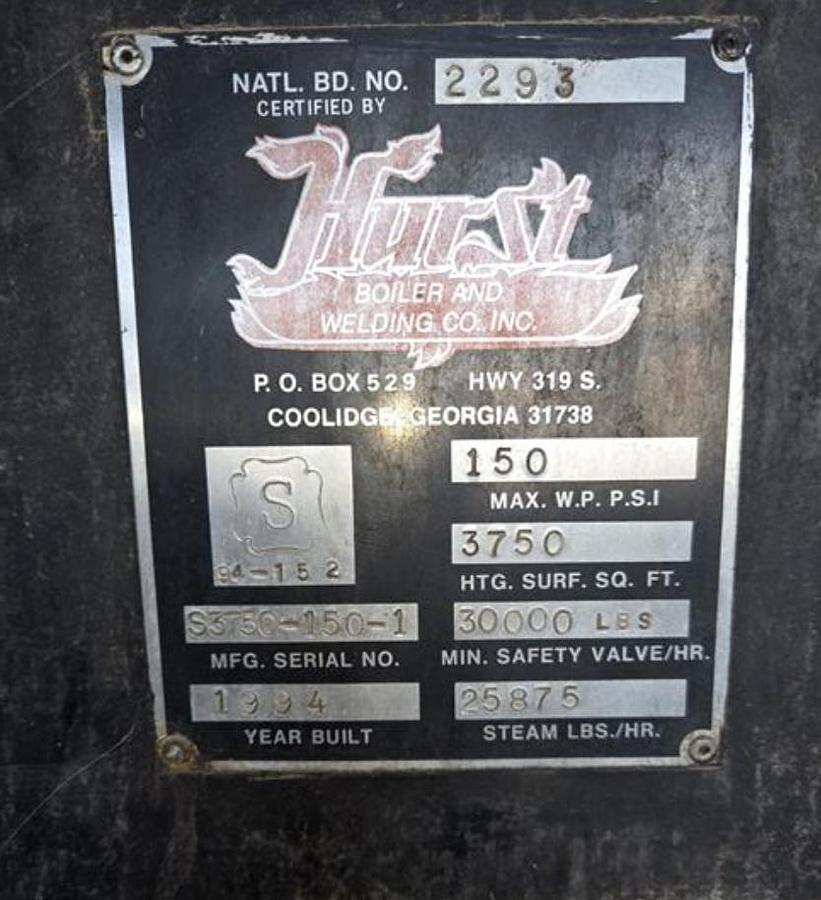

- Manufacturer: Hurst Boiler & Welding Co., Inc., Coolidge, GA

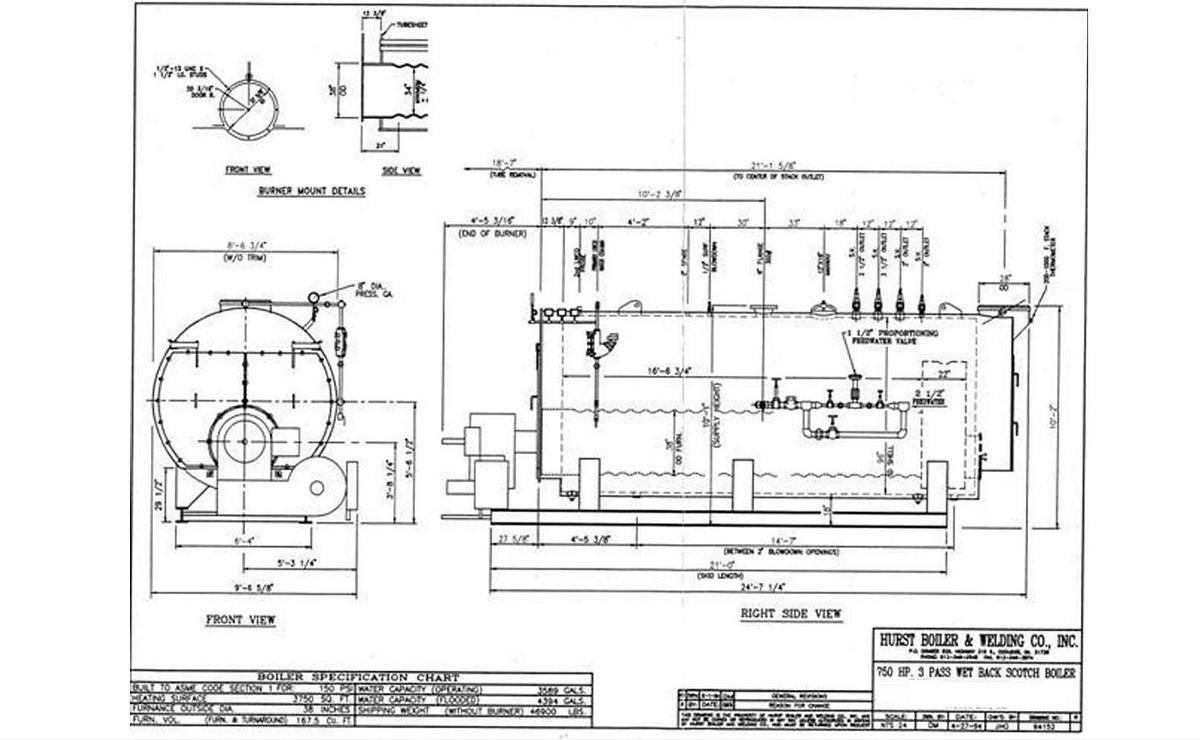

- Equipment Type: Packaged Firetube Gas-Fired Steam Boiler (3-Pass Wetback Scotch Design)
- Model: S3750-150-1
- Boiler Horsepower: 750 HP
- Max Working Pressure: 150 PSI
- Heating Surface: 3,750 sq. ft.
- Steam Output: 25,875 lbs/hr
- Min Safety Valve Capacity: 30,000 lbs/hr
- National Board No.: 2293
- Mfg. Serial No.: S3750-150-1
- Year Built: 1994
- Fuel Type: Natural Gas
- Water Capacity (Operating): 3,589 gallons
- Water Capacity (Flooded): 4,394 gallons
- Furnace Outside Diameter: 38 in.
- Furnace/Turnaround Volume: 167.5 cu. ft.
- Shipping Weight (without burner): 46,900 lbs
Controls:

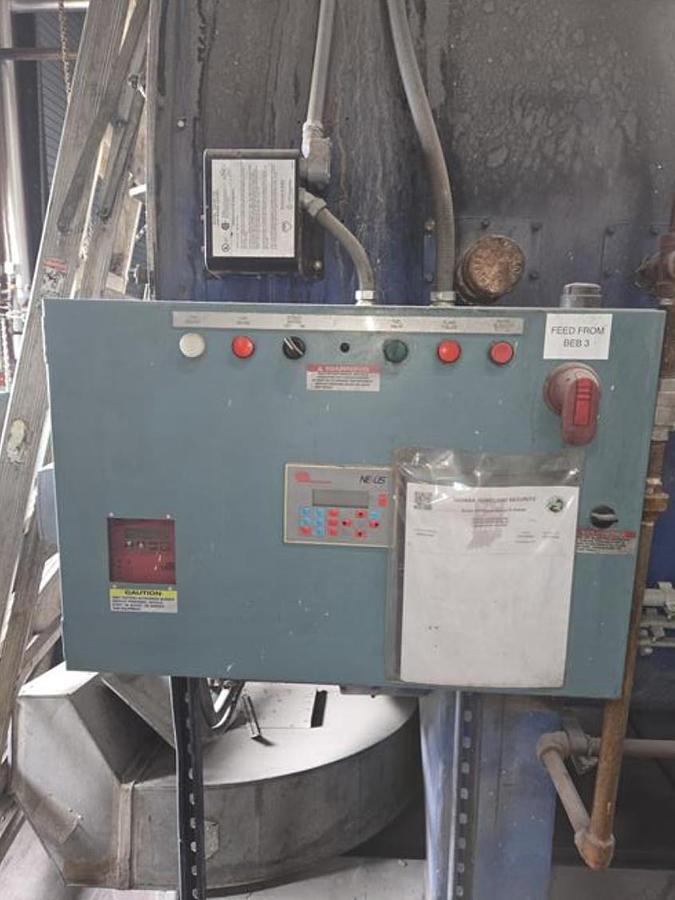

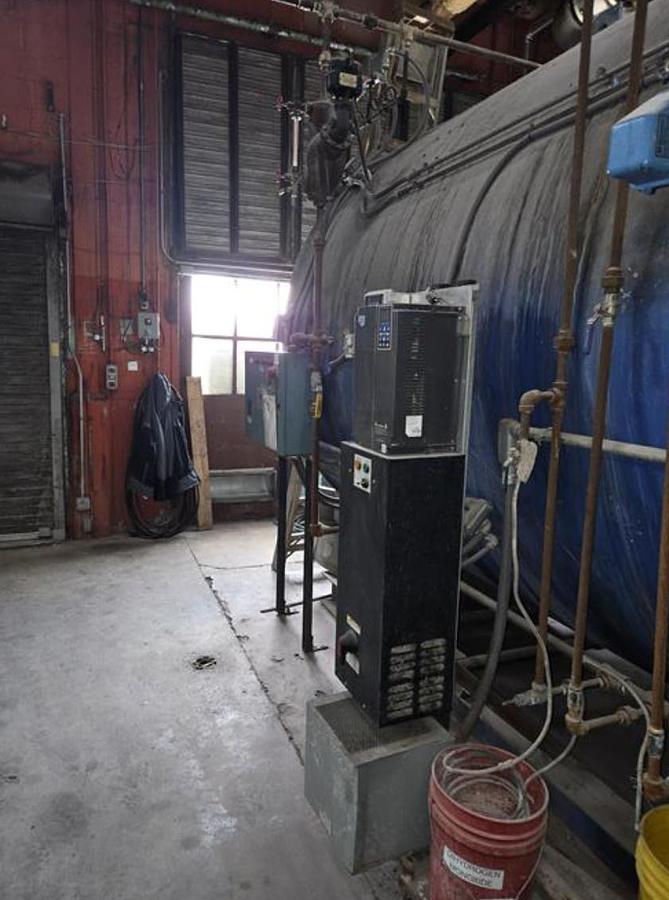

- NEXUS control panel with digital display
- Feed water control panel (labeled "FEED FROM BEB 3")

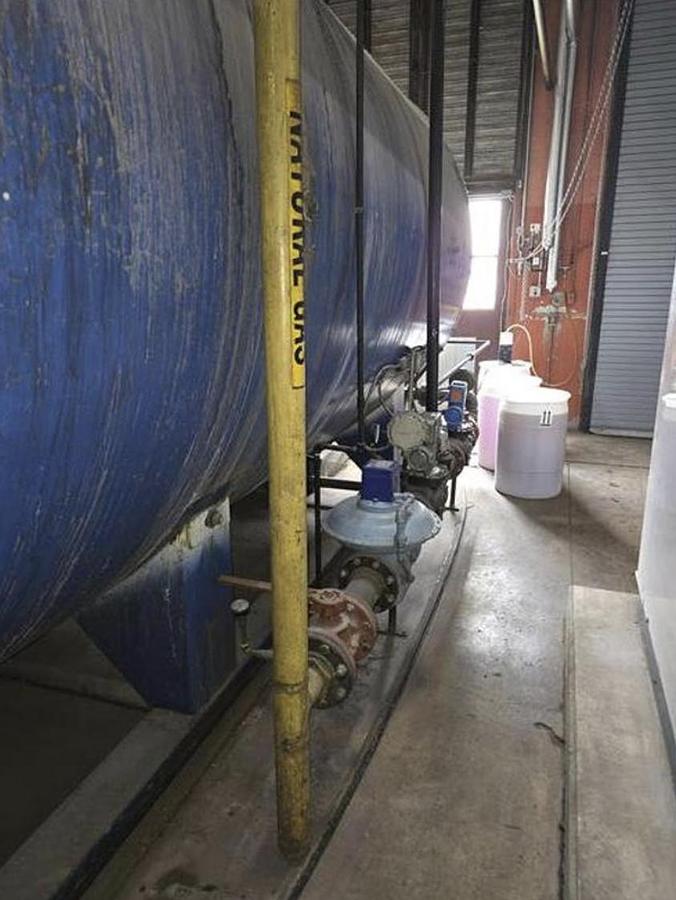

- Natural gas fuel train, labeled piping
KEY FEATURES AND BENEFITS
- Hurst 3-pass wetback Scotch marine firetube design
- 750 HP, 150 PSI steam rating
- Natural gas fired
- Good running order, currently installed and operating
- National Board registered (No. 2293)
- Complete with control panel and feedwater system
SPECIFICATIONS SUMMARY
- Manufacturer: Hurst Boiler & Welding Co.
- Model: S3750-150-1
- Boiler Horsepower: 750 HP
- Max Working Pressure: 150 PSI
- Steam Output: 25,875 lbs/hr
- Fuel Type: Natural Gas
- National Board No.: 2293
- Year Built: 1994
- Condition: Used, good running order
ADDITIONAL INFORMATION
- Condition: Used, good running order
- Manufacturer: Hurst Boiler & Welding Co., Coolidge, GA
- Model: S3750-150-1, 750 HP
- Year Built: 1994
- Rated: 150 PSI Steam
- National Board No.: 2293
- Inspection: Welcome, contact us to schedule
