200 HP Cleaver Brooks CB700-200-200 Firetube Steam Boiler #BSCB200HP192
Stock #: BSCB200HP192
Specifications
Description
Overview

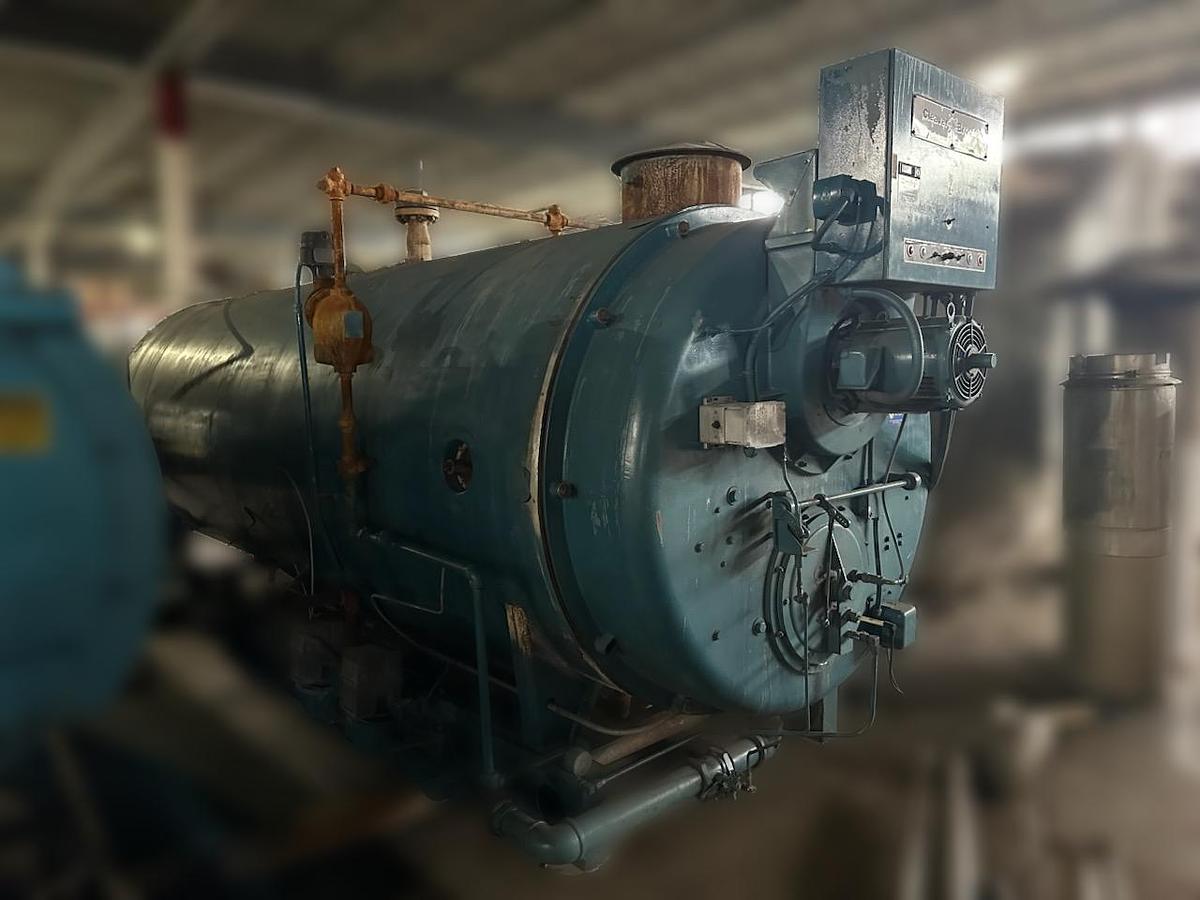

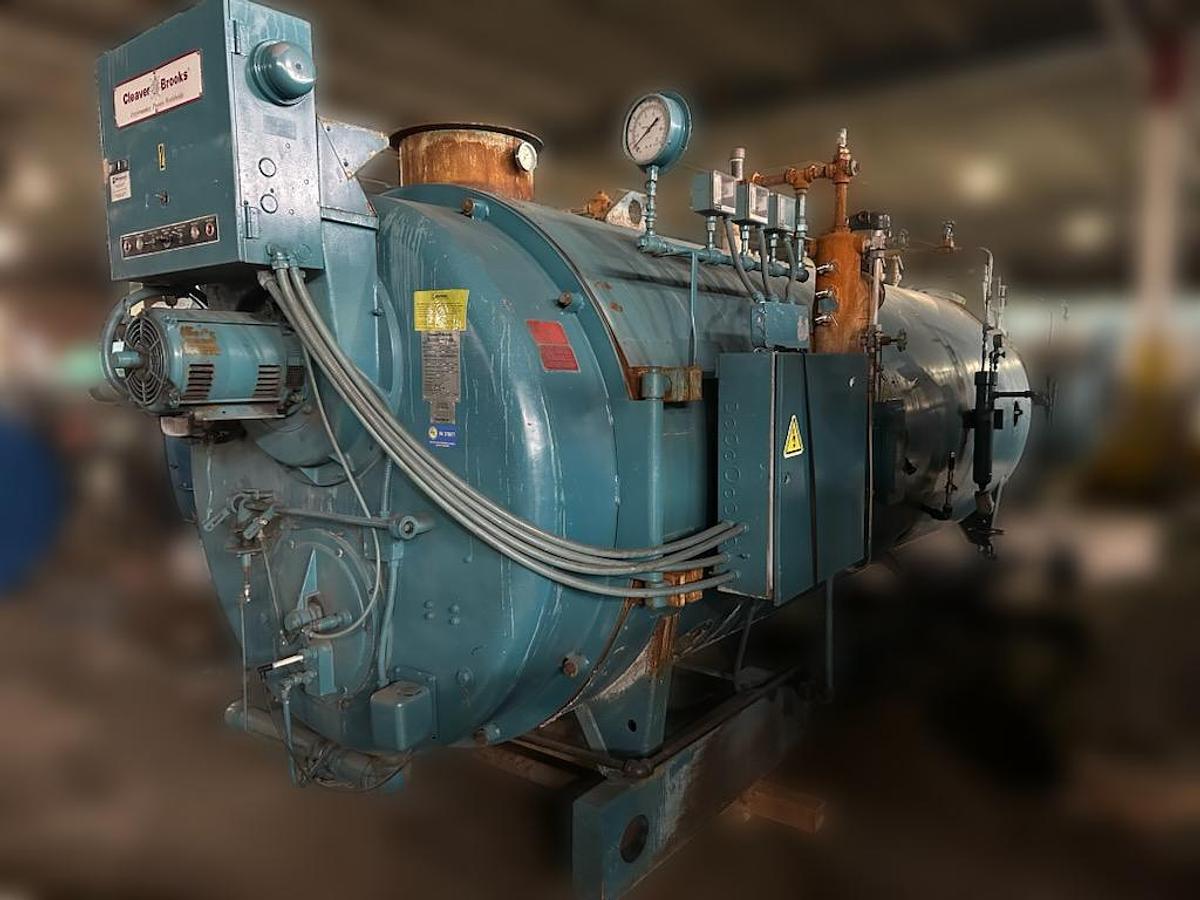

This used 200 HP Cleaver Brooks CB Packaged Steam Boiler is designed for high-performance steam production at medium pressure. Operating at 200 PSI, this industrial-grade steam boiler delivers reliable performance for demanding applications. With an impressive input capacity of 8,369,000 BTU/hr and natural gas fuel capability, this unit provides substantial steam output while maintaining efficiency.
Manufactured in 1998, this steam boiler showcases Cleaver Brooks' renowned engineering and durability, making it a dependable solution for industrial steam requirements.
Design and Performance
- Horsepower: 200 HP
- Design Pressure: 200 PSI Steam
- Fuel Type: Natural Gas
- Input Capacity: 8,369,000 BTU/hr
- Blower Motor: 10 HP
- Main Power Supply: 460 Volt / 3 Phase / 60 Hz / 15 Amp
- Minimum Circuit Ampacity: 19 Amp
- Max Rating of Circuit Protection: 60 Amp
- Control Circuit: 120 Volt / 1 Phase / 60 Hz / 7 Amp
- UL Listed: Gas-Fired Boiler Assembly (No. A63744)
Ideal Applications
- Manufacturing Facilities
- Industrial Processing Plants
- District Heating Systems
- Chemical Processing
- Pharmaceutical Production
- Large Commercial Operations
- Institutional Facilities
Benefits
- High-pressure steam generation for industrial applications
- Efficient natural gas combustion for optimized energy usage
- Robust design engineered for continuous industrial operation
- Cleaver Brooks' quality construction ensures safety and reliability
- Powerful output suitable for demanding industrial environments

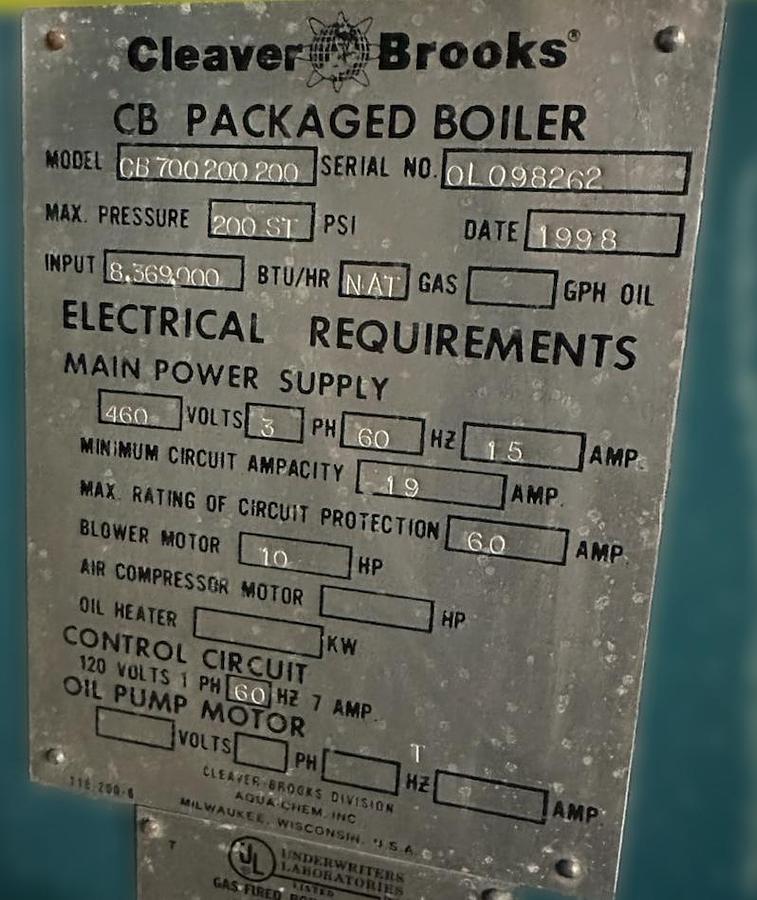

Additional Information
- Condition: Used
- Manufacturer: Cleaver Brooks
- Model: CB700-200-200
- Serial Number: OL098262
- Year Built: 1998
- Boiler Type: Medium-Pressure Steam Boiler
- Certification: UL Listed Gas-Fired Boiler Assembly
- Safety Controls: Primary Safety Controls with "GD" Integral Group
