200 HP Cleaver Brooks CB-100-200 Firetube Steam Boiler #BSCB250HP246

Overview

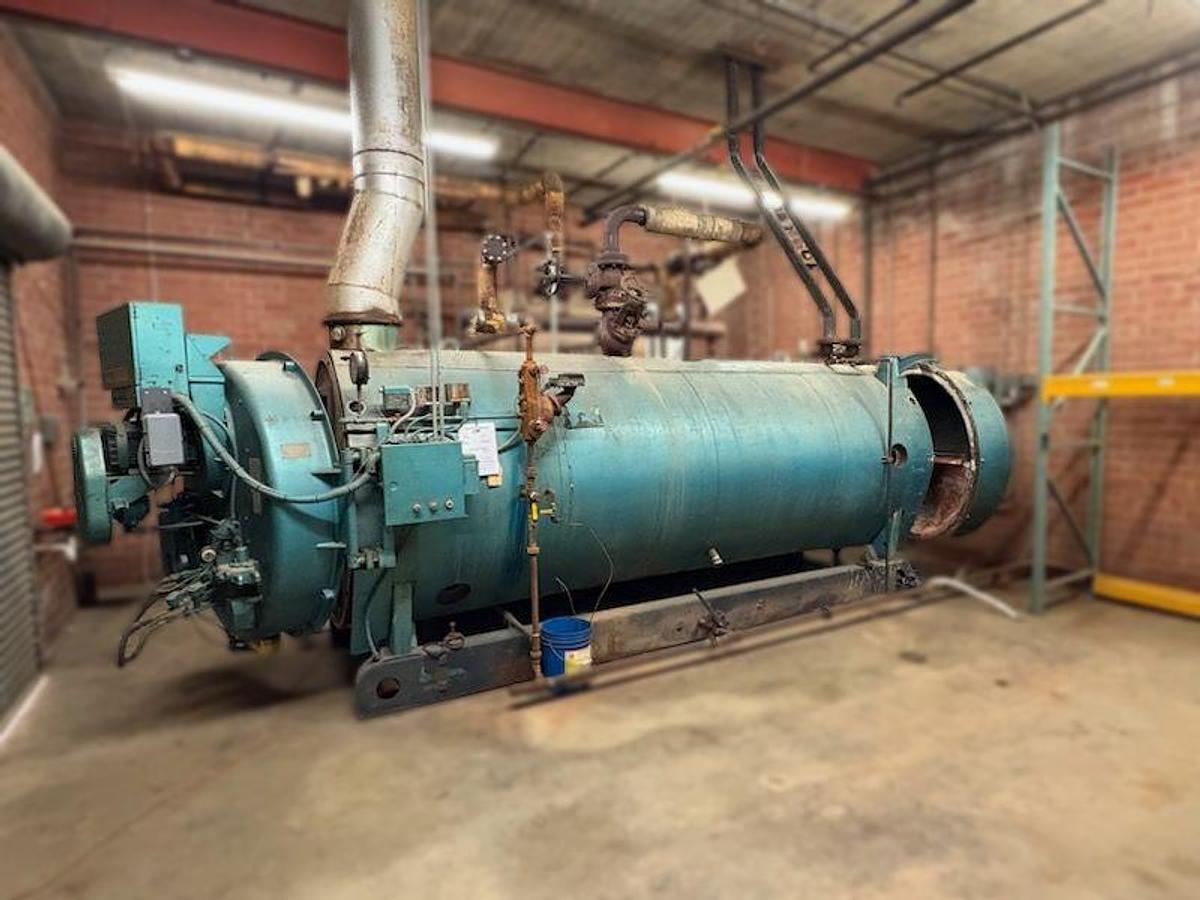

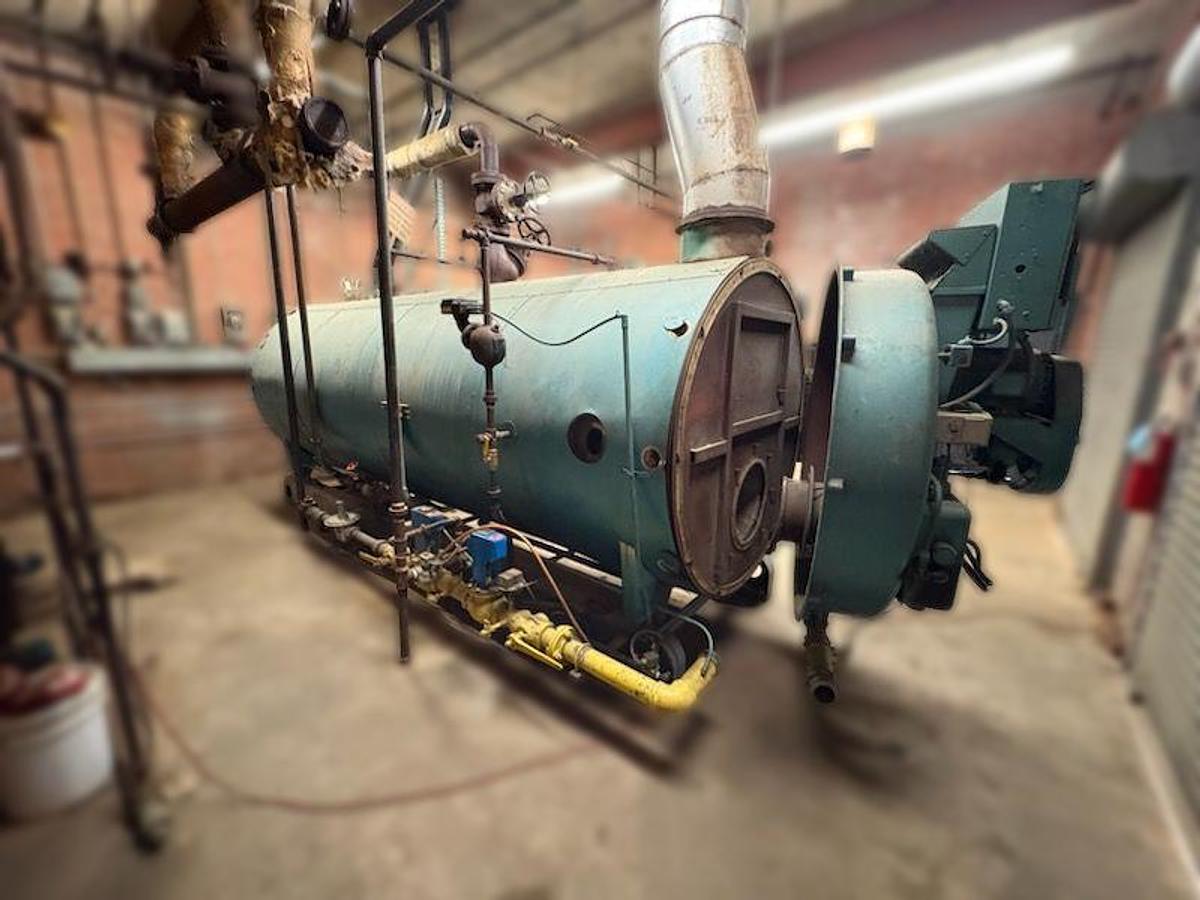

This Cleaver Brooks CB-100-200 packaged steam boiler was manufactured on August 5, 1981. With 200 horsepower capacity (8,369,000 BTU/HR input) and 150 PSI maximum working pressure, this natural gas-fired steam boiler includes integrated burner assembly, 10 HP blower motor, control systems, and factory-insulated jacket on skid-mounted base.

Design and Performance

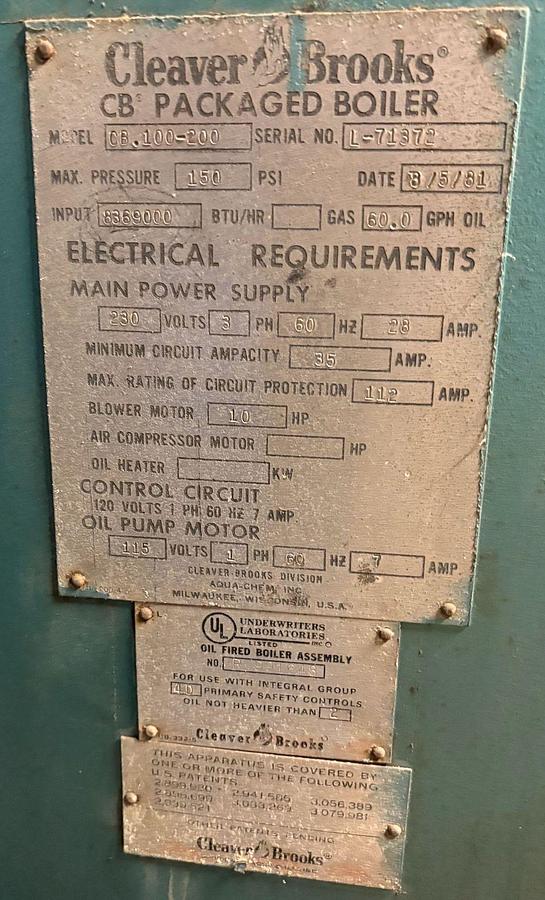

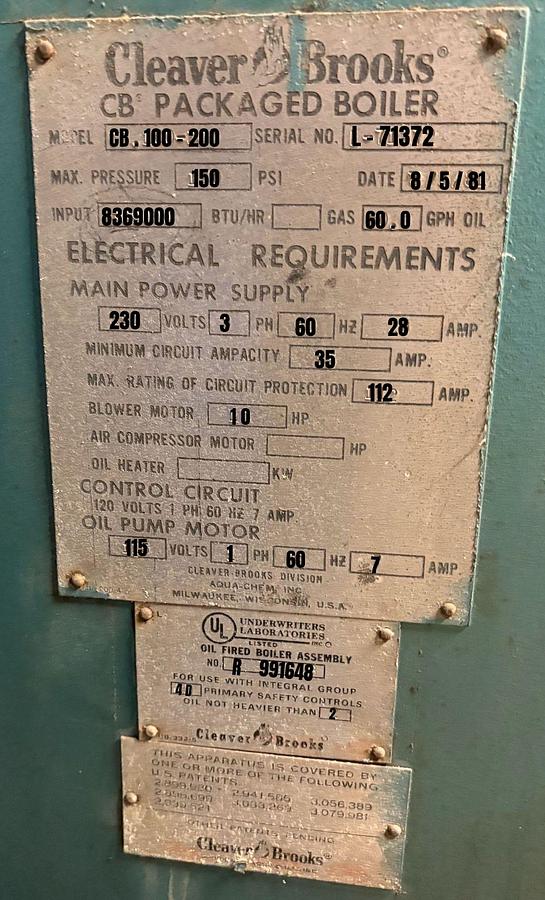

Boiler Specifications:

• Manufacturer: Cleaver Brooks
• Model: CB-100-200
• Serial Number: L-71372
• Manufacturing Date: 8/5/81
• UL File Number: R-991648

Pressure and Capacity Ratings:

• Maximum Pressure: 150 PSI
• Input Rating: 8,369,000 BTU/HR
• Horsepower: 250 HP (calculated)
• Fuel Type: Natural Gas / Diesel.
• Blower Motor: 10 HP

Electrical Requirements:

• Main Power Supply: 230 Volts, 3-Phase, 60 Hz, 28 Amp
• Minimum Circuit Ampacity: 35 Amp
• Maximum Rating of Circuit Protection: 112 Amp
• Control Circuit: 120 Volts, 1-Phase, 60 Hz, 7 Amp
• Oil Pump Motor: 115 Volts, 1-Phase, 60 Hz, 7 Amp

Construction:

• Packaged steam boiler design
• Insulated jacket panels
• Skid-mounted base
• Front access door
• Rear access panels
• Aqua/teal painted finish
• Integrated burner assembly
• Pressure gauge mounting points
• Sight glass ports

System Components:

• Cleaver Brooks CB-100-200 steam boiler

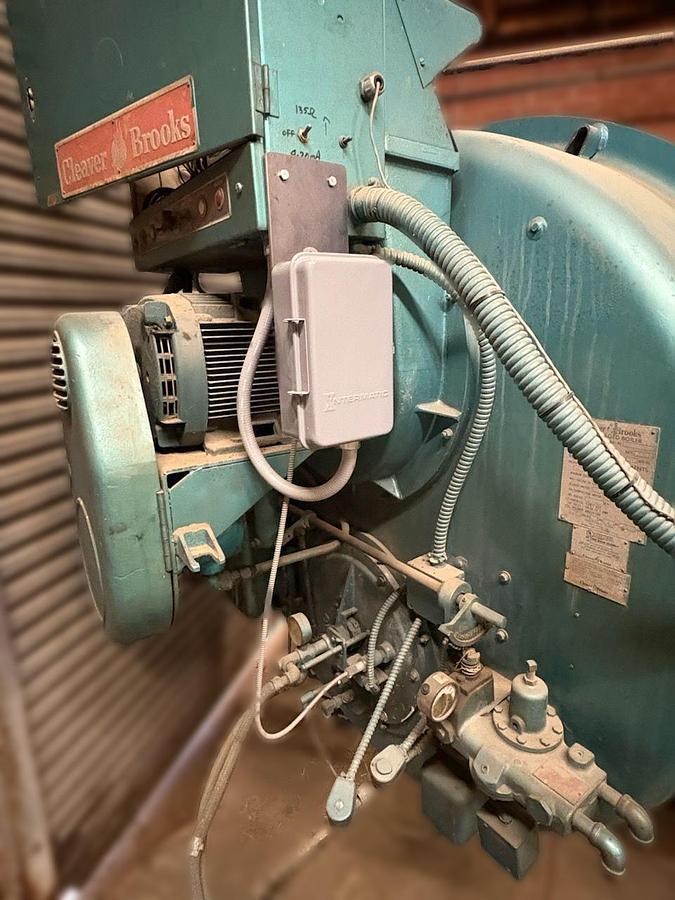

• Integrated natural gas burner
• 10 HP blower motor assembly
• Control panel with switches
• Oil pump motor system
• Pressure gauges
• Safety valve
• Electrical junction boxes
• Insulated jacket panels
• Sight glass viewing ports
• Valve manifolds and piping connections

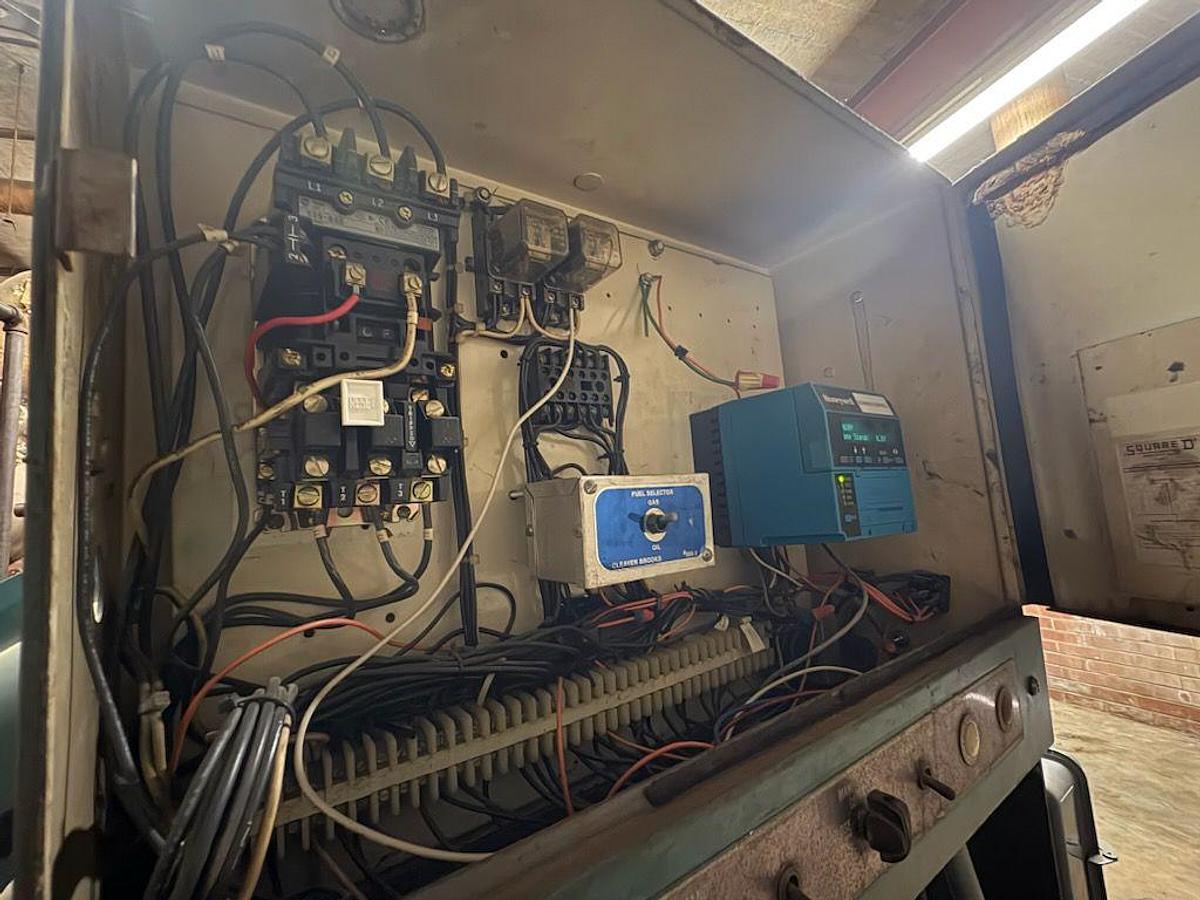

Control Features:

• Integrated control panel
• Flame safeguard system
• Operating indicator lights
• Burner management controls
• Safety switches

Safety Features:

• UL Listed (File #R-991648)
• Integral primary safety controls
• Pressure relief valve
• Flame monitoring
• Circuit protection systems
• Safety interlocks

Key Specifications

• Condition: Used - 1981 Manufacture
• Brand: Cleaver Brooks
• Model: CB-100-200
• Serial Number: L-71372
• UL File: R-991648
• Manufacturing Date: 8/5/81
• Equipment Type: Packaged Steam Boiler

Performance Data:

• Horsepower: 200 HP
• Input: 8,369,000 BTU/HR
• Maximum Pressure: 150 PSI
• Fuel Type: Natural Gas  diesel
• Blower Motor: 10 HP

Electrical Specifications:

• Main Supply: 230V, 3-Phase, 60Hz, 28A
• Minimum Circuit Ampacity: 35A
• Maximum Circuit Protection: 112A
• Control Circuit: 120V, 1-Phase, 60Hz, 7A
• Oil Pump Motor: 115V, 1-Phase, 60Hz, 7A

Physical Specifications:

• Configuration: Packaged steam boiler
• Mounting: Skid base
• Jacket: Insulated panel construction
• Color: Aqua/teal painted finish
• Access: Front and rear doors/panels

Burner Specifications:

• Type: Integrated natural gas burner
• Gas Input: 8,369,000 BTU/HR
• Blower Motor: 10 HP
• Controls: Flame safeguard system

Ideal Applications

• Commercial Buildings
• Institutional Facilities
• Manufacturing Plants
• Schools and Universities
• Hospitals and Healthcare Facilities
• Office Buildings
• Apartment Complexes
• Food Processing Plants
• Laundries and Dry Cleaners
• Warehouses
• District Heating Systems
• Process Steam Requirements
• Industrial Process Applications

Benefits

• 1981 Cleaver Brooks manufacture
• 200 HP steam capacity
• Natural gas fired / Diesel
• 150 PSI maximum pressure
• 8.369 MMBtu input
• UL Listed for safety
• Packaged design
• 10 HP blower motor included
• Integrated control system
• Insulated jacket construction
• Skid-mounted base
• Factory-assembled unit
• Sight glass viewing capability
• Front and rear access

Additional Information

• Condition: Used - 1981 Manufacture
• Manufacturer: Cleaver Brooks,
• Model: CB-100-200
• Serial Number: L-71372
• Manufacturing Date: 8/5/81
• UL File Number: R-991648

Capacity Ratings:

• Horsepower: 200 HP
• Maximum Pressure: 150 PSI
• Input: 8,369,000 BTU/HR
• Fuel Type: Natural Gas /  Diesel
• Blower Motor: 10 HP

Electrical Requirements:

• Main Power: 230 Volts, 3-Phase, 60 Hz, 28 Amp
• Minimum Circuit Ampacity: 35 Amp
• Maximum Circuit Protection Rating: 112 Amp
• Control Circuit: 120 Volts, 1-Phase, 60 Hz, 7 Amp
• Oil Pump Motor: 115 Volts, 1-Phase, 60 Hz, 7 Amp

Construction: Packaged steam boiler with factory-insulated jacket on skid base

Made In: USA (Milwaukee, Wisconsin)

Patents: U.S. Patents 3,205,865, 3,941,566, 3,056,389, 3,079,881
