150 HP Cleaver Brooks CB-I-700-150LE Firetube Steam Boiler #BSCB700HP185
Stock #: BSCB700HP185
Specifications
ManufacturerCleaver Brooks
ModelCB-I-700-150LE
TypeFiretube
Horsepower150 HP
Design Pressure200 PSI
OutputSteam
FuelNatural Gas
Year Built1997
ConditionUsed
PriceCall for Price
LocationOhio
AvailabilityAvailable
National Board #2643
Stock NumberBSCB700HP185
Description
OVERVIEW

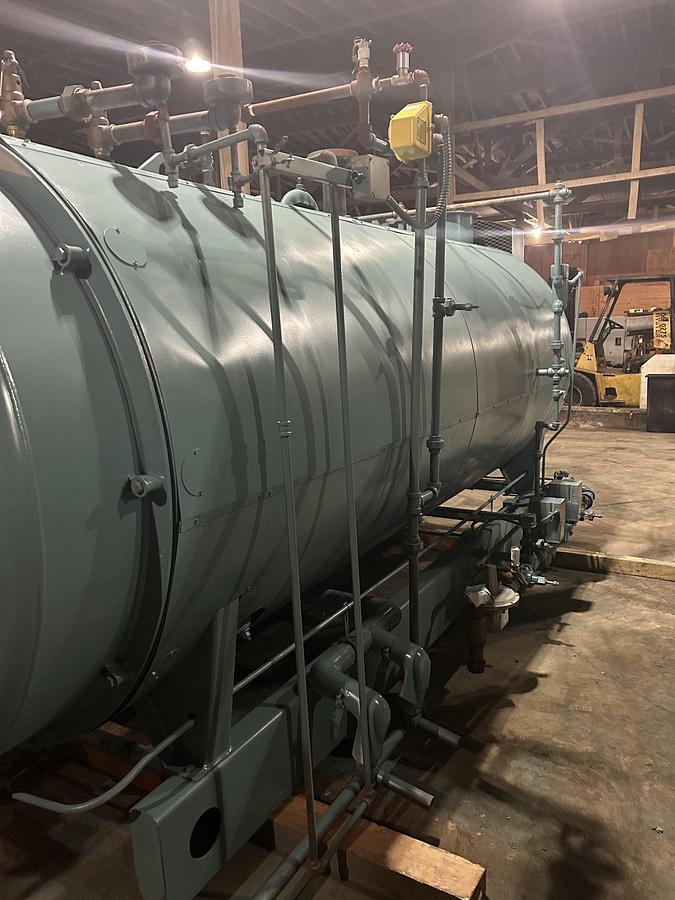

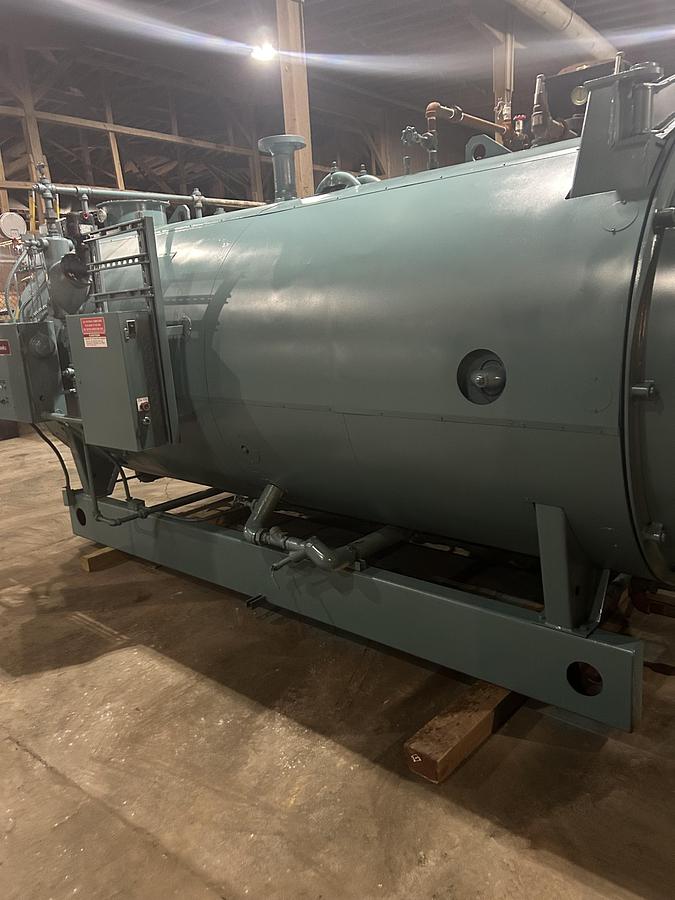

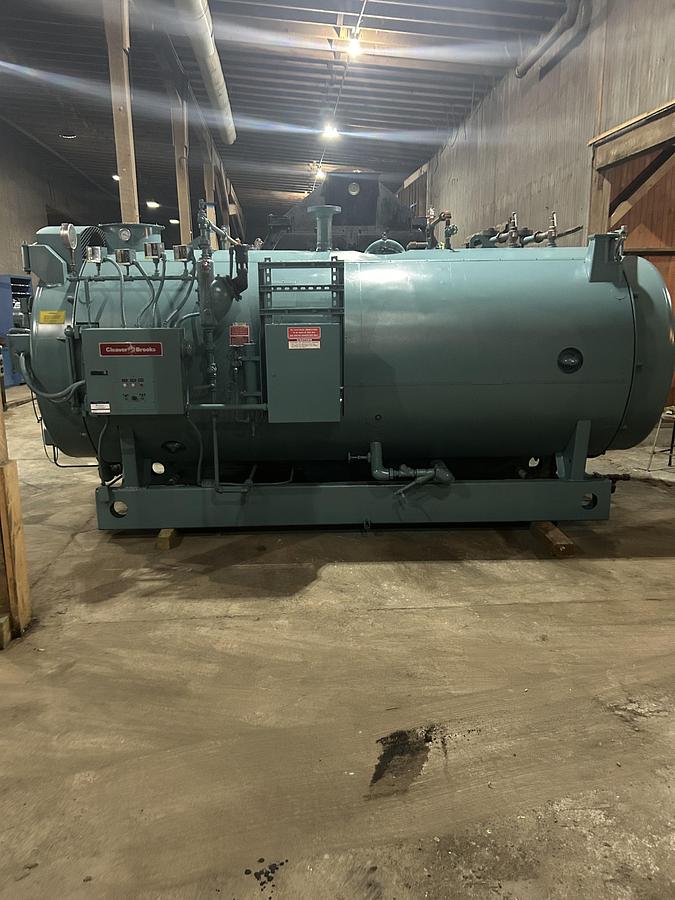

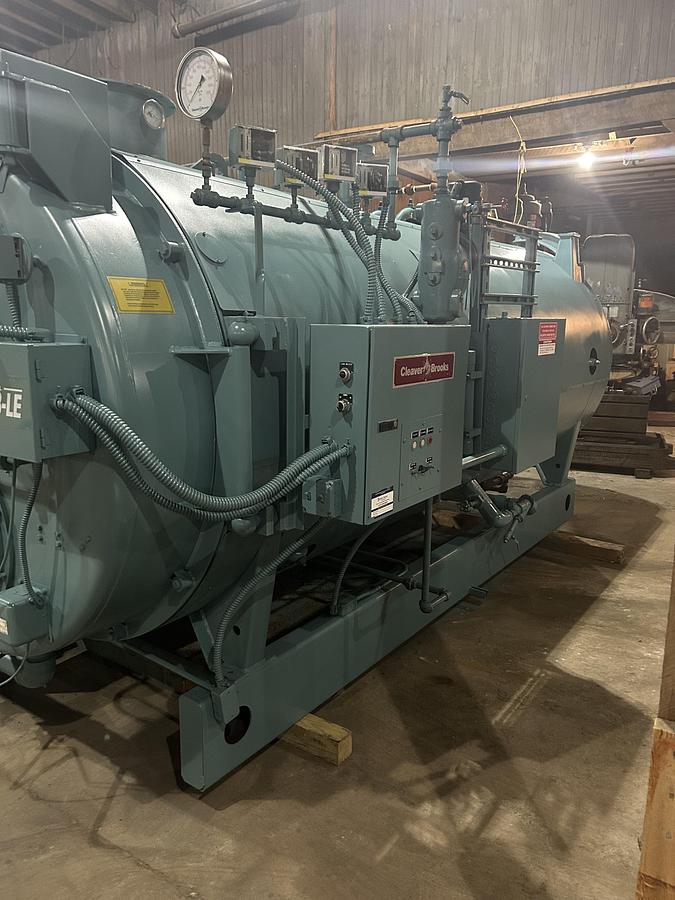

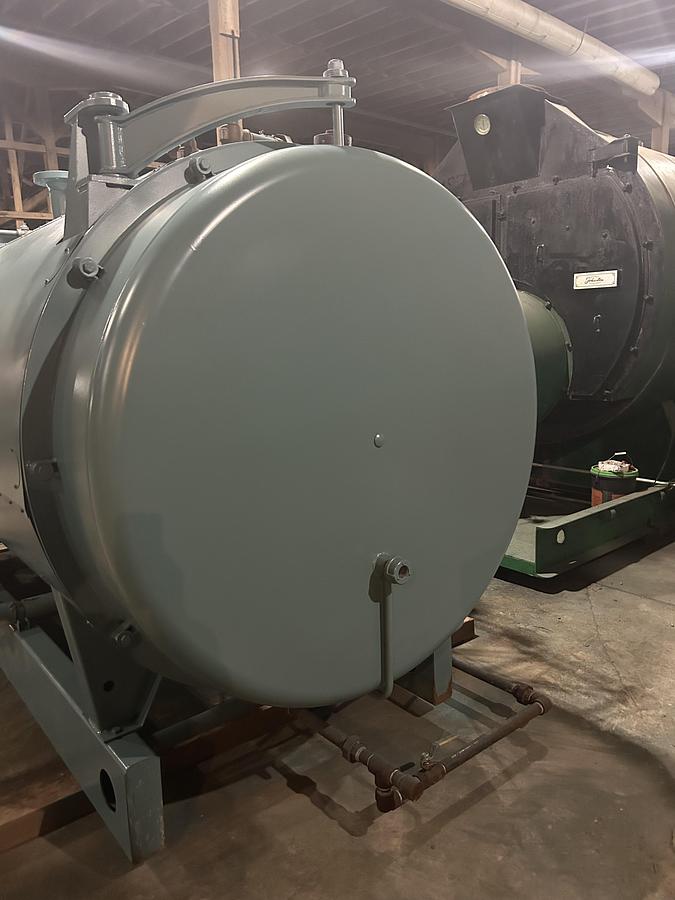

This is a Cleaver-Brooks Model CB-I-700-150LE packaged firetube steam boiler, rated 150 boiler horsepower. Factory-built by Cleaver-Brooks, certified by Cleaver-Brooks of Canada Ltd., dated 5/16/1997. Maximum allowable working pressure 200 PSI. Natural gas fired with 750 sq. ft. heating surface and 5,175 lbs/hr maximum design steaming capacity. National Board certified. Contact us to schedule an inspection.
EQUIPMENT SPECIFICATIONS
Boiler:
- Manufacturer: Cleaver-Brooks, certified by Cleaver-Brooks of Canada Ltd.
- Equipment Type: Packaged Firetube Steam Boiler
- Model: CB-I-700-150LE
- Boiler Horsepower: 150 HP
- Design Pressure (MAWP): 200 PSI
- Fuel Type: Natural Gas
- Input Capacity: 6,024,000 BTU/hr

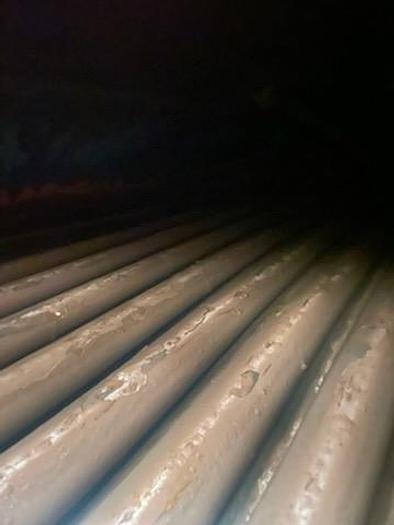

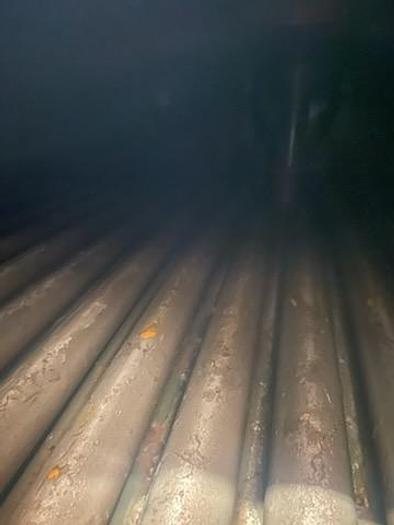

- Heating Surface: 750 sq. ft.
- Max Design Steaming Capacity: 5,175 lbs/hr

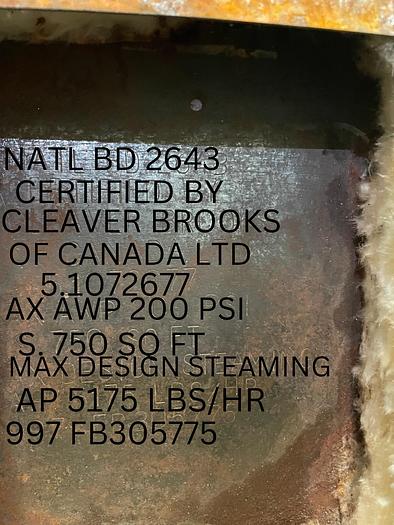

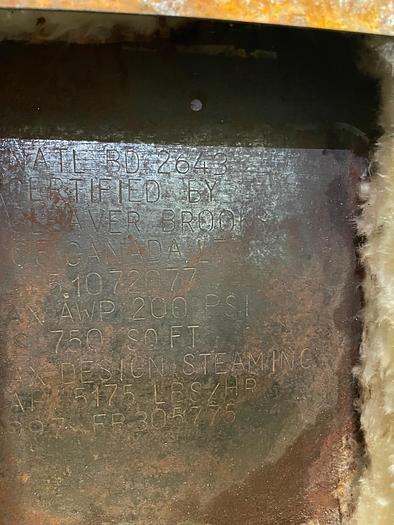

- National Board No.: 2643
- Serial No.: L-96376
- Date Built: 5/16/1997

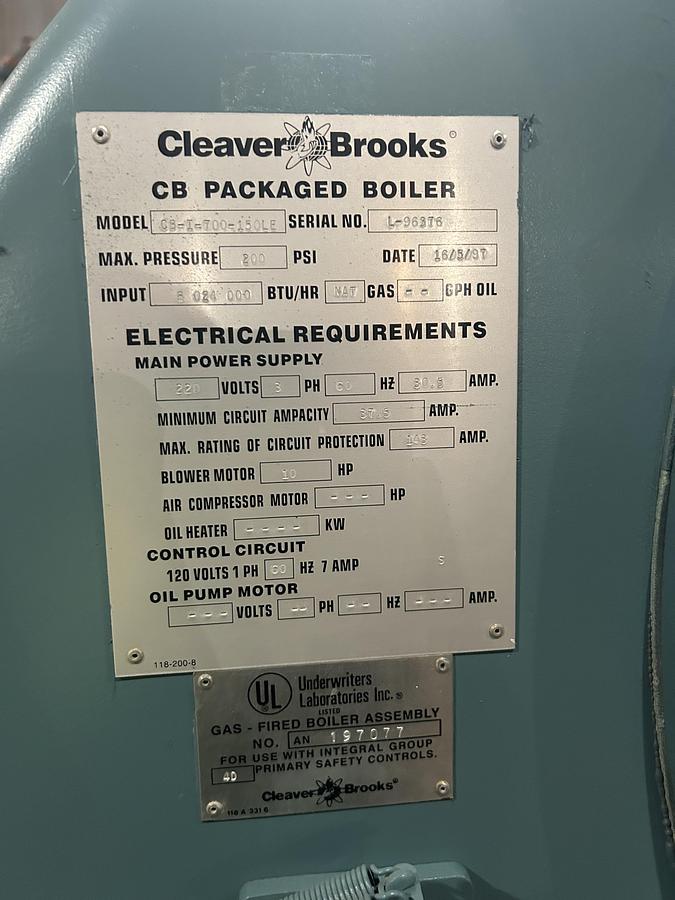

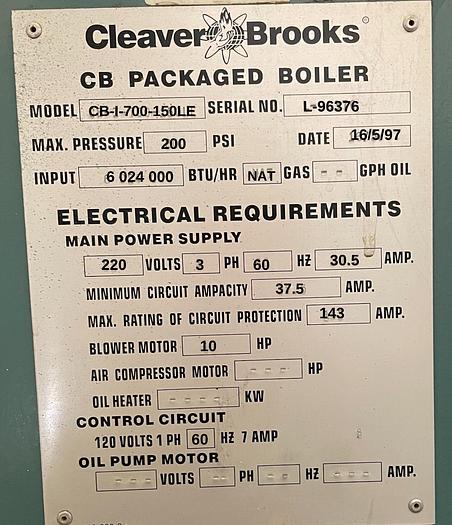

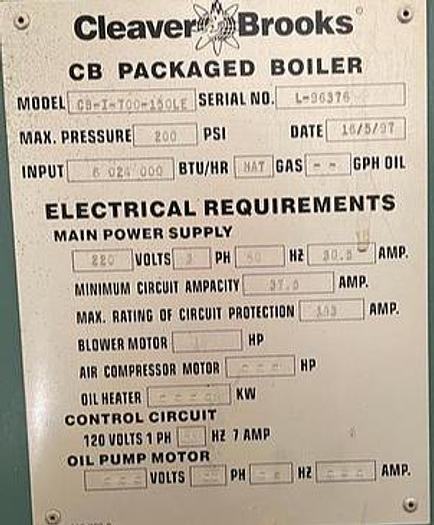

Electrical Requirements:
- Main Power Supply: 220 Volts, 3 PH, 60 Hz, 30.5 Amp
- Minimum Circuit Ampacity: 37.5 Amp
- Max. Rating of Circuit Protection: 143 Amp
- Blower Motor: 10 HP
- Control Circuit: 120 Volts, 1 PH, 60 Hz, 7 Amp
KEY FEATURES AND BENEFITS
- Cleaver-Brooks packaged firetube design
- 150 HP, 200 PSI design rating
- Natural gas fired, high-efficiency operation
- National Board certified
- Suited for industrial processing, commercial heating, power generation, and paper mill applications
SPECIFICATIONS SUMMARY
- Manufacturer: Cleaver-Brooks
- Model: CB-I-700-150LE
- Boiler Horsepower: 150 HP
- Design Pressure: 200 PSI
- Fuel Type: Natural Gas
- National Board No.: 2643
- Serial No.: L-96376
- Year Built: 1997
- Condition: Used
ADDITIONAL INFORMATION
- Condition: Used
- Manufacturer: Cleaver-Brooks
- Model: CB-I-700-150LE, 150 HP
- Year Built: 1997
- Rated: 200 PSI Steam
- Fuel: Natural Gas
- Inspection: Welcome, contact us to schedule
